Öffnungszustand per Funk melden

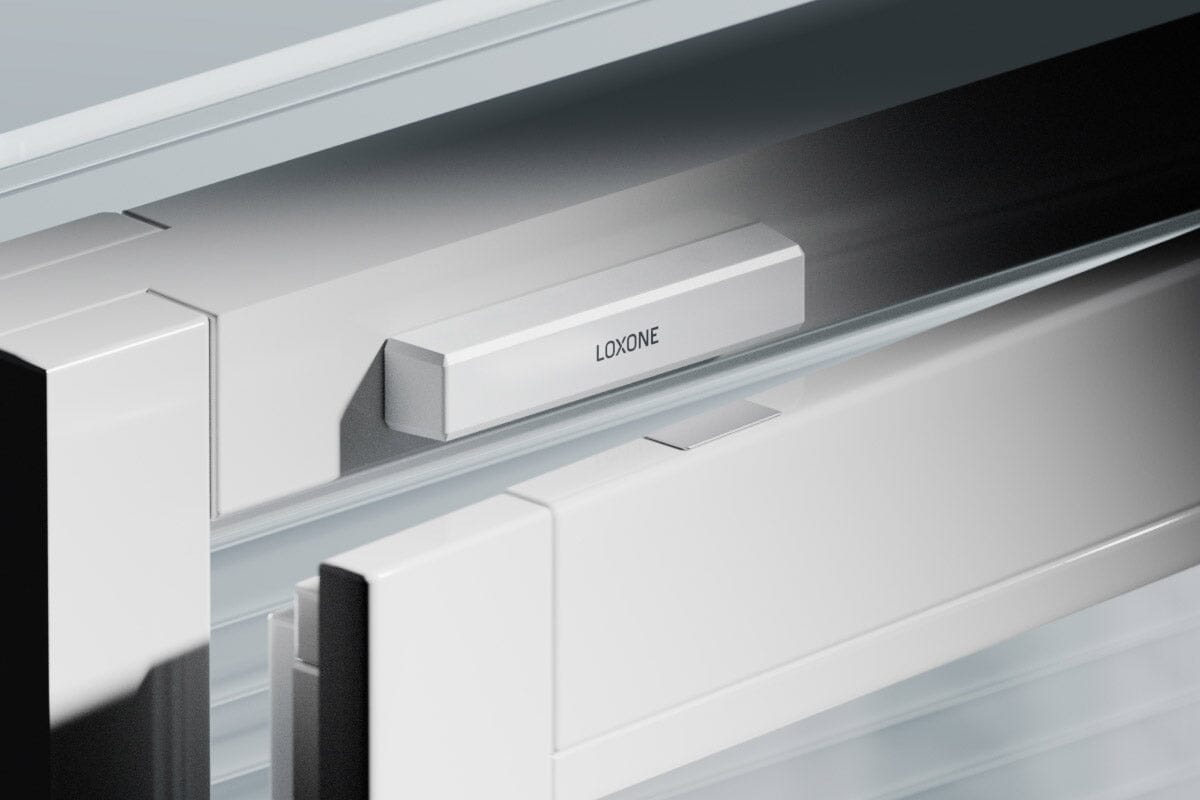

Der Loxone Tür- und Fensterkontakt Air ist ein kompakter Funksensor mit integriertem Reedkontakt. Zusammen mit dem beiliegenden Magneten erkennt er, ob ein Fenster oder eine Tür offen oder geschlossen ist. Der Sensor kommt an den Rahmen, der Magnet an den Flügel. Die Meldung lässt sich für Alarmfunktionen ebenso nutzen wie zum Absenken der Heizung beim Lüften. Erhältlich in Weiß und Anthrazit.
Funkanbindung und Batteriebetrieb
Die Verbindung zum Miniserver läuft über Loxone Air mit interner Antenne. Zwei AA-Batterien versorgen den Kontakt bis zu zehn Jahre, eine Leitung wird nicht benötigt. Befestigt wird mit dem beiliegenden Klebeband, was den Sensor auch für die Nachrüstung geeignet macht.
- Loxone Air, 868 MHz (SRD-Band Europa), 4 Kanäle, max. 15,1 mW e.r.p.
- 915 MHz (ISM-Band Region 2), 10 Kanäle, max. 13,2 mW
- Interne Antenne
- Sensortyp Reed-Kontakt

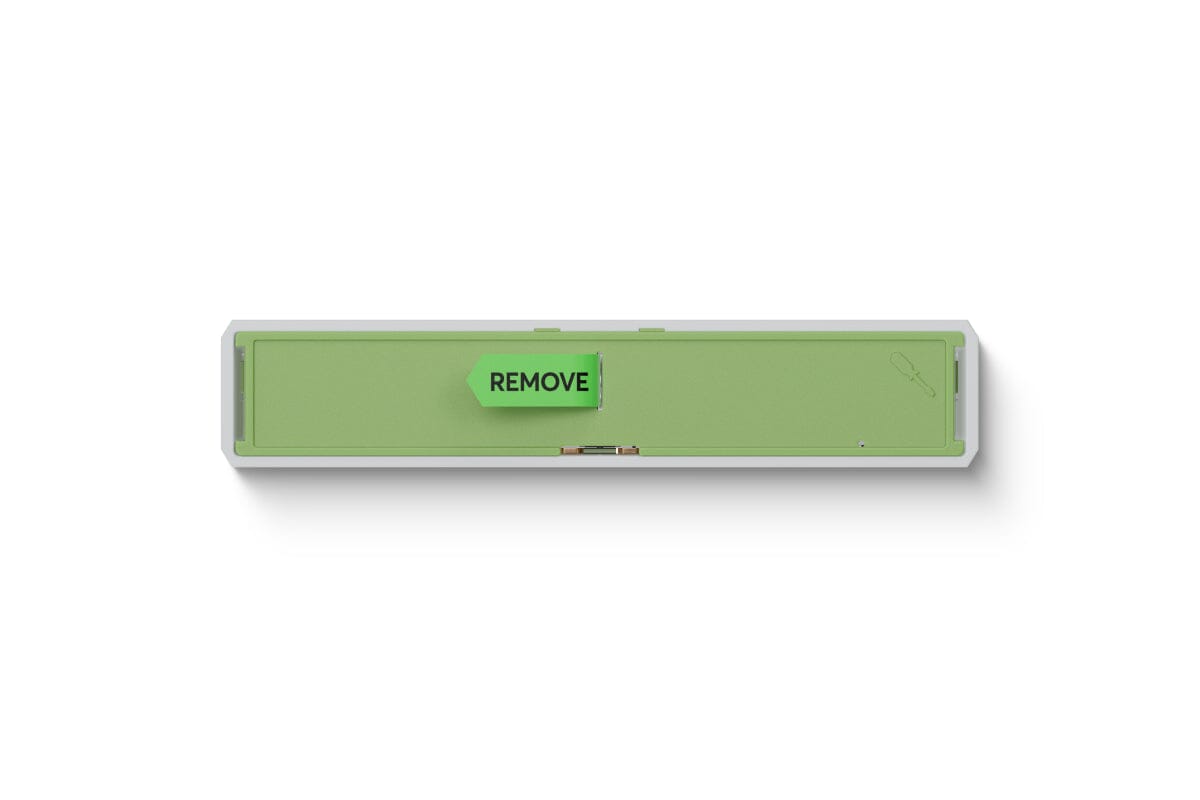

- Versorgung über 2x 1,5 V AA Batterien
- Batterielebensdauer bis zu 10 Jahre
- Betriebstemperatur 0 bis 55 °C
- Luftfeuchtigkeit max. 95 % r. F., nicht kondensierend
- Schutzart IP20
- Abmessungen 116 x 22 x 17,5 mm
Ausschreibungstext
Funkbetriebener Tür- und Fensterkontakt mit integriertem Reedkontakt und beiliegendem Magneten zur Erfassung des Öffnungszustands. Anbindung über Loxone Air, 868 MHz mit vier Kanälen und interner Antenne. Versorgung über zwei Batterien der Größe AA mit einer Lebensdauer von bis zu zehn Jahren. Schutzart IP20, Abmessungen 116 x 22 x 17,5 mm, Ausführungen Weiß und Anthrazit.
<style>
.st-specs{
--st-accent:#00BAF2;
--st-ink:#32292F;
--st-muted:rgba(50,41,47,.62);
--st-line:rgba(50,41,47,.12);
--st-size:15px;
display:block;width:100%;max-width:100%;min-width:0;
font-family:inherit;color:var(--st-ink);font-size:var(--st-size);line-height:1.5;margin:0
}
.st-specs *{box-sizing:border-box}
.st-specs .st-var+.st-var{margin-top:34px;padding-top:28px;border-top:1px solid var(--st-line)}
.st-specs .st-var-title{font-size:17px;font-weight:800;letter-spacing:-.01em;color:var(--st-ink);margin:0 0 18px;padding:0;border:0}
.st-specs .st-sec{margin:0 0 22px}
.st-specs .st-sec:last-child{margin-bottom:0}
.st-specs .st-sec-title{display:flex;align-items:center;gap:8px;font-size:11px;font-weight:700;letter-spacing:.14em;text-transform:uppercase;color:var(--st-ink);margin:0 0 2px;padding:0;border:0}
.st-specs .st-sec-title::before{content:"";flex:0 0 auto;width:14px;height:2px;background:var(--st-accent)}
.st-specs table{width:100%;border-collapse:collapse;margin:0}
.st-specs th,.st-specs td{text-align:left;vertical-align:top;padding:10px 0;border-bottom:1px solid var(--st-line)}
.st-specs th{width:41%;padding-right:16px;font-weight:600;color:var(--st-ink);font-size:14px}
.st-specs td{color:var(--st-muted)}
.st-specs .st-v{display:block}
.st-specs .st-v+.st-v{margin-top:6px}
.st-specs .st-k{display:block;font-size:11px;font-weight:600;letter-spacing:.06em;text-transform:uppercase;color:rgba(50,41,47,.45);margin-bottom:1px}
.st-specs img{max-width:200px;height:auto;margin-top:4px}
@media (max-width:600px){
.st-specs tr{display:block;padding:9px 0;border-bottom:1px solid var(--st-line)}
.st-specs th,.st-specs td{display:block;width:auto;padding:0;border:0}
.st-specs th{margin-bottom:2px}
}
</style>
<div class="st-specs">
<div class="st-sec">
<h3 class="st-sec-title">Elektrische Spezifikationen</h3>
<table>
<tr><th scope="row">Versorgungsspannung</th><td><span class="st-v">2x 1,5 V AA Batterien</span></td></tr>
<tr><th scope="row">Batterie Lebensdauer</th><td><span class="st-v">bis zu 10 Jahren</span></td></tr>
</table>
</div>
<div class="st-sec">
<h3 class="st-sec-title">Sensor-Spezifikationen</h3>
<table>
<tr><th scope="row">Typ</th><td><span class="st-v">Reed-Kontakt</span></td></tr>
</table>
</div>
<div class="st-sec">
<h3 class="st-sec-title">Schnittstellen</h3>
<table>
<tr><th scope="row">Loxone Air</th><td>
<span class="st-v">868 MHz (SRD Band Europa), 4 Kanäle, max. 15,1 mW e.r.p.</span>
<span class="st-v">915 MHz (ISM Band Region 2), 10 Kanäle, max. 13,2 mW</span>
<span class="st-v">interne Antenne</span>
</td></tr>
</table>
</div>
<div class="st-sec">
<h3 class="st-sec-title">Umgebungsbedingungen</h3>
<table>
<tr><th scope="row">Temperatur</th><td><span class="st-v">0 … 55 °C / 32 … 131 °F</span></td></tr>
<tr><th scope="row">Luftfeuchtigkeit</th><td><span class="st-v">max. 95 % r. F. (nicht kondensierend)</span></td></tr>
<tr><th scope="row">Schutzart</th><td><span class="st-v">IP20</span></td></tr>
</table>
</div>
<div class="st-sec">
<h3 class="st-sec-title">Anschlussplan</h3>
<table>
<tr><th scope="row">Anschlussplan</th><td><span class="st-v"><img src="https://pim.loxone.com/01%20Product%20Data/05%20Product%20Specifications/Connection%20Diagram/100666%2C100667%20-%20Door%20%26%20Window%20Contact%20Air.png" alt="Anschlussplan" loading="lazy"></span></td></tr>
</table>
</div>
<div class="st-sec">
<h3 class="st-sec-title">Produkteigenschaften</h3>
<table>
<tr><th scope="row">Farbe</th><td>

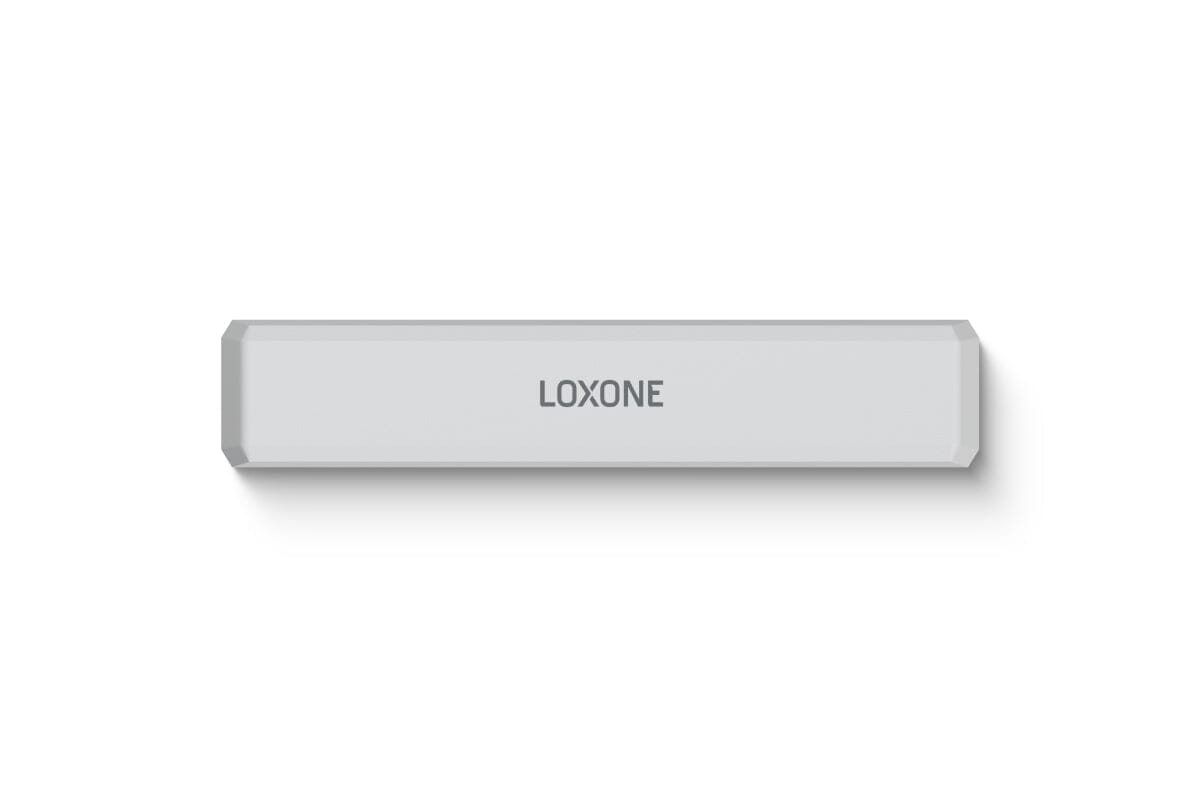

<span class="st-v"><span class="st-k">Weiß</span>Art.-Nr. 100666</span>

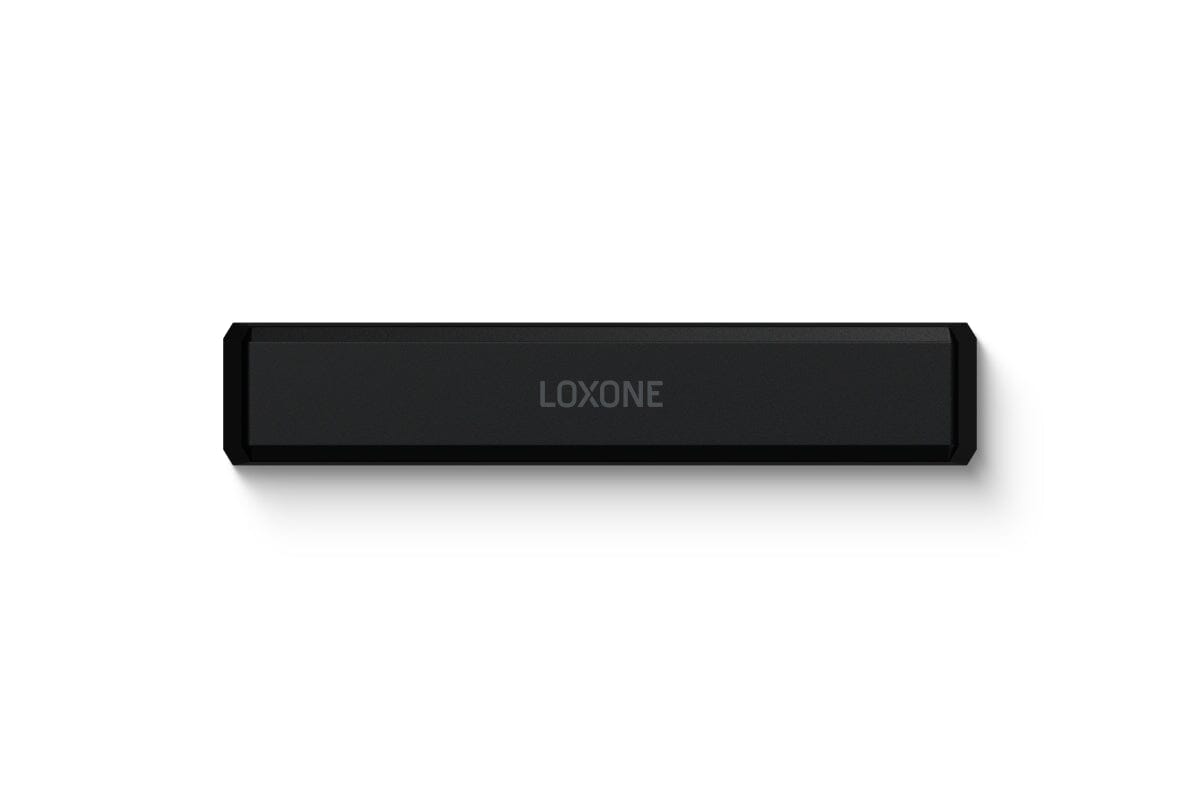

<span class="st-v"><span class="st-k">Anthrazit</span>Art.-Nr. 100667</span>
</td></tr>
<tr><th scope="row">Glanzgrad</th><td><span class="st-v">Matt</span></td></tr>
</table>
</div>
<div class="st-sec">
<h3 class="st-sec-title">Gewicht & Abmessungen</h3>
<table>
<tr><th scope="row">Nettogewicht</th><td><span class="st-v">70 g</span></td></tr>
<tr><th scope="row">Bruttogewicht</th><td><span class="st-v">88 g</span></td></tr>
<tr><th scope="row">Produktmaße</th><td><span class="st-v">116 x 22 x 17,5 mm / 4,57 x 0,87 x 0,69" (L x B x H)</span></td></tr>
<tr><th scope="row">Produktmaßzeichnung</th><td><span class="st-v"><img src="https://pim.loxone.com/01%20Product%20Data/05%20Product%20Specifications/Product%20Dimensions%20Drawing/100666%2C100667%2C100668%20-%20Door%20%26%20Window%20Contact%20Air%2C%20Water%20Sensor%20Air.png" alt="Produktmaßzeichnung" loading="lazy"></span></td></tr>
<tr><th scope="row">Packmaß</th><td><span class="st-v">140 x 56 x 21 mm / 5,51 x 2,21 x 0,83" (L x B x H)</span></td></tr>
</table>
</div>
<div class="st-sec">
<h3 class="st-sec-title">Zertifizierungen & Standards</h3>
<table>
<tr><th scope="row">Schutzklasse</th><td><span class="st-v">IP20</span></td></tr>
</table>
</div>
</div>
<style>
.st-lieferumfang{
--st-accent:#00BAF2;
--st-ink:#32292F;
--st-muted:rgba(50,41,47,.62);
--st-line:rgba(50,41,47,.12);
--st-size:15px;
display:block;width:100%;max-width:100%;min-width:0;
font-family:inherit;color:var(--st-ink);font-size:var(--st-size);line-height:1.5;margin:0
}
.st-lieferumfang *{box-sizing:border-box}
.st-lieferumfang .st-note{display:block;padding:11px 14px;margin:0 0 14px;border-left:2px solid var(--st-accent);background:rgba(50,41,47,.04);border-radius:0 6px 6px 0;font-size:13.5px;line-height:1.45;color:var(--st-muted)}
.st-lieferumfang .st-note strong{color:var(--st-ink);font-weight:600}
.st-lieferumfang .st-note--warn{border-left-color:#E0A800;background:rgba(224,168,0,.08)}
.st-lieferumfang .st-lu-list{list-style:none;padding:0;margin:0}
.st-lieferumfang .st-lu-list li{display:flex;align-items:baseline;gap:14px;padding:11px 0;border-bottom:1px solid var(--st-line)}
.st-lieferumfang .st-lu-list li:last-child{border-bottom:none}
.st-lieferumfang .st-menge{flex:0 0 auto;min-width:38px;font-size:12px;font-weight:700;letter-spacing:.06em;color:var(--st-accent);font-variant-numeric:tabular-nums}
.st-lieferumfang .st-artikel{flex:1 1 auto;min-width:0;color:var(--st-ink)}
</style>
<div class="st-lieferumfang">
<ul class="st-lu-list">
<li><span class="st-menge">1x</span><span class="st-artikel">Tür- & Fensterkontakt Air</span></li>
<li><span class="st-menge">2x</span><span class="st-artikel">AA Batterien</span></li>
<li><span class="st-menge">1x</span><span class="st-artikel">Klebeband</span></li>
<li><span class="st-menge">1x</span><span class="st-artikel">Magnet</span></li>
<li><span class="st-menge">1x</span><span class="st-artikel">Beipackfolder</span></li>
</ul>
</div>
<style>
.st-download-links{
--st-accent:#00BAF2;
--st-ink:#32292F;
--st-line:rgba(50,41,47,.18);
display:block;width:100%;max-width:100%;min-width:0;
font-family:inherit;color:var(--st-ink);margin:0
}
.st-download-links *{box-sizing:border-box}
.st-download-links .st-var+.st-var{margin-top:26px;padding-top:22px;border-top:1px solid rgba(50,41,47,.12)}
.st-download-links .st-var-title{font-size:17px;font-weight:800;letter-spacing:-.01em;color:var(--st-ink);margin:0 0 12px;padding:0;border:0}
.st-download-links .st-dl-grid{display:flex;flex-wrap:wrap;gap:9px;margin:0}
.st-download-links .st-dl{
display:inline-flex;align-items:center;gap:10px;max-width:100%;
padding:11px 17px;border:1px solid var(--st-line);border-radius:9px;background:#fff;
color:var(--st-ink);text-decoration:none;
font-size:11.5px;font-weight:600;letter-spacing:.07em;text-transform:uppercase;line-height:1.3;
transition:border-color .15s ease,color .15s ease,background-color .15s ease
}
.st-download-links .st-dl:hover,.st-download-links .st-dl:focus-visible{border-color:var(--st-accent);color:var(--st-accent);background:rgba(0,186,242,.05)}
.st-download-links .st-dl:focus-visible{outline:2px solid var(--st-accent);outline-offset:2px}
.st-download-links .st-dl-glyph{flex:0 0 auto;width:17px;height:17px}
.st-download-links .st-dl-name{min-width:0;overflow-wrap:anywhere}
.st-download-links .st-dl-fmt{flex:0 0 auto;padding-left:10px;border-left:1px solid rgba(50,41,47,.16);color:rgba(50,41,47,.42);font-weight:700}
.st-download-links .st-dl:hover .st-dl-fmt{border-left-color:rgba(0,186,242,.3)}
@media (max-width:480px){
.st-download-links .st-dl-grid{display:block}
.st-download-links .st-dl{display:flex;width:100%;margin-bottom:9px;padding:11px 14px}
.st-download-links .st-dl-name{flex:1 1 auto}
}
@media (prefers-reduced-motion:reduce){.st-download-links .st-dl{transition:none}}
</style>
<div class="st-download-links">
<div class="st-dl-grid">
<a class="st-dl" href="https://pim.loxone.com/01%20Product%20Data/01%20Products/Security/100666%20-%20T%C3%BCr-%20%26%20Fensterkontakt%20Air%20wei%C3%9F/Specifications/Folder_DoorWindowContactAir_100666%2C100667.pdf" target="_blank" rel="noopener noreferrer">
<svg class="st-dl-glyph" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round" aria-hidden="true"><path d="M6.8 16.5a3.9 3.9 0 0 1 .55-7.78 5.4 5.4 0 0 1 10.4 1.05A3.45 3.45 0 0 1 17.4 16.5"/><path d="M12 11.4v6.1m0 0 2.4-2.4M12 17.5l-2.4-2.4"/></svg>
<span class="st-dl-name">Folder</span>
<span class="st-dl-fmt">PDF</span>
</a>
<a class="st-dl" href="https://pim.loxone.com/01%20Product%20Data/01%20Products/Security/100666%20-%20T%C3%BCr-%20%26%20Fensterkontakt%20Air%20wei%C3%9F/Specifications/CEEU_Door%20%26%20Window%20Contact%20Air%2C%20Water%20Sensor%20Air_CZ.pdf" target="_blank" rel="noopener noreferrer">
<svg class="st-dl-glyph" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round" aria-hidden="true"><path d="M6.8 16.5a3.9 3.9 0 0 1 .55-7.78 5.4 5.4 0 0 1 10.4 1.05A3.45 3.45 0 0 1 17.4 16.5"/><path d="M12 11.4v6.1m0 0 2.4-2.4M12 17.5l-2.4-2.4"/></svg>
<span class="st-dl-name">Konformität CZ</span>
<span class="st-dl-fmt">PDF</span>
</a>
<a class="st-dl" href="https://pim.loxone.com/01%20Product%20Data/01%20Products/Security/100666%20-%20T%C3%BCr-%20%26%20Fensterkontakt%20Air%20wei%C3%9F/Specifications/CEEU_Door%20%26%20Window%20Contact%20Air%2C%20Water%20Sensor%20Air_PL.pdf" target="_blank" rel="noopener noreferrer">
<svg class="st-dl-glyph" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round" aria-hidden="true"><path d="M6.8 16.5a3.9 3.9 0 0 1 .55-7.78 5.4 5.4 0 0 1 10.4 1.05A3.45 3.45 0 0 1 17.4 16.5"/><path d="M12 11.4v6.1m0 0 2.4-2.4M12 17.5l-2.4-2.4"/></svg>
<span class="st-dl-name">Konformität PL</span>
<span class="st-dl-fmt">PDF</span>
</a>
<a class="st-dl" href="https://www.loxone.com/dede/kb/tuer-und-fensterkontakt-air/" target="_blank" rel="noopener noreferrer">
<svg class="st-dl-glyph" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round" aria-hidden="true"><path d="M14 4h6v6"/><path d="M20 4 10.5 13.5"/><path d="M18 14.5V19a2 2 0 0 1-2 2H5a2 2 0 0 1-2-2V8a2 2 0 0 1 2-2h4.5"/></svg>
<span class="st-dl-name">Dokumentation</span>
<span class="st-dl-fmt">LINK</span>
</a>
<a class="st-dl" href="https://pim.loxone.com/datasheet/100666-door-window-contact-air-white" target="_blank" rel="noopener noreferrer">
<svg class="st-dl-glyph" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round" aria-hidden="true"><path d="M6.8 16.5a3.9 3.9 0 0 1 .55-7.78 5.4 5.4 0 0 1 10.4 1.05A3.45 3.45 0 0 1 17.4 16.5"/><path d="M12 11.4v6.1m0 0 2.4-2.4M12 17.5l-2.4-2.4"/></svg>
<span class="st-dl-name">Datenblatt</span>
<span class="st-dl-fmt">PDF</span>
</a>
</div>
</div>
<p><strong>Sicherheitsinformationen:</strong></p>
<ul class="wp-block-list">
<li>Lesen Sie die Gebrauchsanweisung vor der Verwendung</li>
</ul>
<p><strong>Herstellerinformationen:</strong></p>
<ul class="wp-block-list">
<li><strong>Hersteller: </strong>Loxone Electronics GmbH</li>
<li><strong>Adresse:</strong> Smart Home 1, 4154 Kollerschlag Österreich</li>
<li><strong>E-Mail: </strong><a href="mailto:office@loxone.com">office@loxone.com</a></li>
</ul>
