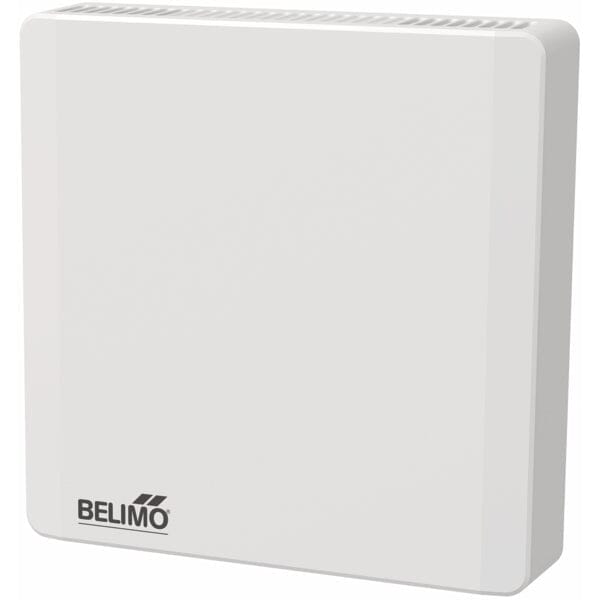

Raumsensor für Temperatur mit MP-Bus und Zweikanal-Ausgang
Der 22RT-19-1 misst die Raumtemperatur und stellt sie über einen konfigurierbaren Analogausgang oder über MP-Bus an einen übergeordneten Regler bereit. Das Gerät wird für die Wandmontage im Raum eingesetzt und lässt sich sowohl an Belimo Systeme als auch an Regler anderer Hersteller anschließen.
Messung und Kommunikation
Eine adaptive Temperaturkompensation gleicht die Eigenerwärmung des Geräts über den gesamten Versorgungsspannungsbereich aus. Die Konfiguration des Ausgangs erfolgt drahtlos per NFC über die Belimo Assistant 2 App, werkseitig ist 0...10 V eingestellt.
Ansteuerung und Anschluss
Der Ausgang lässt sich zwischen 0...5 V, 0...10 V und 2...10 V umschalten, alternativ steht MP-Bus zur Verfügung.
- Spannungsversorgung AC/DC 24 V
- Elektrischer Anschluss über Klemmen
- Ausgangssignale 0...5 V, 0...10 V, 2...10 V, min. Widerstand 5 kΩ
- Kommunikation über MP-Bus
- Messbereich Temperatur 0...50 °C
- Gehäuse aus Polycarbonat, weiß RAL 9003, Schutzart IP30
Montage und Lieferumfang
Der Sensor wird auf der Wand montiert, Schrauben liegen bei. Auf Anfrage über die lokale Belimo-Vertretung ist das Gerät auch mit individuellem Logo auf der Vorderseite erhältlich.
Ausschreibungstext
Raumsensor 22RT-19-1 für Temperatur, aktiver Ausgang 0...5 V / 0...10 V / 2...10 V oder MP-Bus, Spannungsversorgung AC/DC 24 V, Konfiguration per NFC über Belimo Assistant 2.
