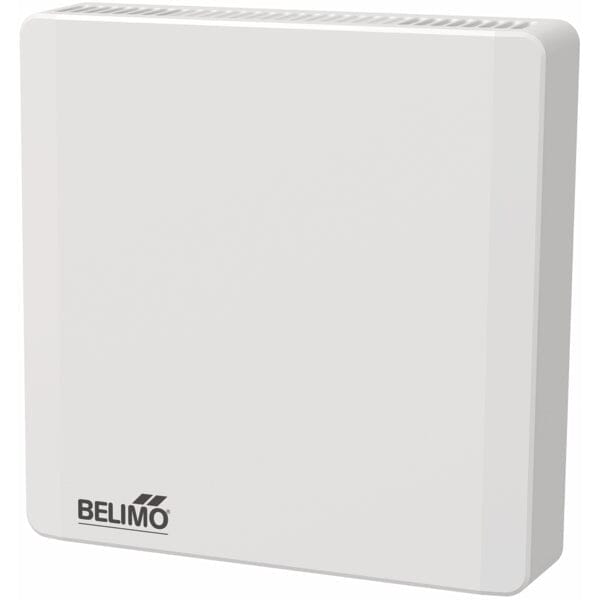

Raumsensor für Temperatur mit MP-Bus und App-Konfiguration
Der 22RT-18-1 misst die Raumtemperatur und stellt sie über einen konfigurierbaren Analogausgang oder über MP-Bus an einen übergeordneten Regler bereit. Das Gerät wird für die Wandmontage im Raum eingesetzt und eignet sich für den Anschluss an Regler anderer Hersteller ebenso wie an Belimo Systeme mit MP-Bus.
Messung und Kommunikation
Eine adaptive Temperaturkompensation gleicht die Eigenerwärmung des Geräts über den gesamten Versorgungsspannungsbereich aus. Die Konfiguration erfolgt drahtlos per NFC über die Belimo Assistant 2 App; die Belimo Display App liest Messwerte in Echtzeit aus und ermöglicht die Sollwertanpassung über das Smartphone.
Ansteuerung und Anschluss
Der Ausgang lässt sich zwischen 0...5 V, 0...10 V, 2...10 V und 4...20 mA umschalten, alternativ steht MP-Bus zur Verfügung.
- Spannungsversorgung AC/DC 24 V
- Elektrischer Anschluss über Klemmen
- Ausgangssignale 0...5 V, 0...10 V, 2...10 V, 4...20 mA
- Kommunikation über MP-Bus
- Messbereich Temperatur 0...50 °C
- Gehäuse aus Polycarbonat, weiß RAL 9003, Schutzart IP30
Montage und Lieferumfang
Der Sensor wird auf der Wand montiert, Schrauben liegen bei. Auf Anfrage über die lokale Belimo-Vertretung ist das Gerät auch mit individuellem Logo auf der Vorderseite erhältlich.
Ausschreibungstext
Raumsensor 22RT-18-1 für Temperatur, aktiver Ausgang 0...5 V / 0...10 V / 2...10 V / 4...20 mA oder MP-Bus, Spannungsversorgung AC/DC 24 V, Konfiguration per NFC über Belimo Assistant 2.
<style>
.st-specs{
--st-accent:#00BAF2;
--st-ink:#32292F;
--st-muted:rgba(50,41,47,.62);
--st-line:rgba(50,41,47,.12);
--st-size:15px;
display:block;width:100%;max-width:100%;min-width:0;
font-family:inherit;color:var(--st-ink);font-size:var(--st-size);line-height:1.5;margin:0
}
.st-specs *{box-sizing:border-box}
.st-specs .st-var+.st-var{margin-top:34px;padding-top:28px;border-top:1px solid var(--st-line)}
.st-specs .st-var-title{font-size:17px;font-weight:800;letter-spacing:-.01em;color:var(--st-ink);margin:0 0 18px;padding:0;border:0}
.st-specs .st-sec{margin:0 0 22px}
.st-specs .st-sec:last-child{margin-bottom:0}
.st-specs .st-sec-title{display:flex;align-items:center;gap:8px;font-size:11px;font-weight:700;letter-spacing:.14em;text-transform:uppercase;color:var(--st-ink);margin:0 0 2px;padding:0;border:0}
.st-specs .st-sec-title::before{content:"";flex:0 0 auto;width:14px;height:2px;background:var(--st-accent)}
.st-specs table{width:100%;border-collapse:collapse;margin:0}
.st-specs th,.st-specs td{text-align:left;vertical-align:top;padding:10px 0;border-bottom:1px solid var(--st-line)}
.st-specs th{width:41%;padding-right:16px;font-weight:600;color:var(--st-ink);font-size:14px}
.st-specs td{color:var(--st-muted)}
.st-specs .st-v{display:block}
.st-specs .st-v+.st-v{margin-top:6px}
.st-specs .st-k{display:block;font-size:11px;font-weight:600;letter-spacing:.06em;text-transform:uppercase;color:rgba(50,41,47,.45);margin-bottom:1px}
.st-specs img{max-width:200px;height:auto;margin-top:4px}
@media (max-width:600px){
.st-specs tr{display:block;padding:9px 0;border-bottom:1px solid var(--st-line)}
.st-specs th,.st-specs td{display:block;width:auto;padding:0;border:0}
.st-specs th{margin-bottom:2px}
}
</style>
<div class="st-specs">
<div class="st-sec">
<h3 class="st-sec-title">Technische Daten</h3>
<table>
<tr>
<th scope="row">Spannung AC/DC</th>
<td><span class="st-v">AC/DC 24 V</span></td>
</tr>
<tr>
<th scope="row">Elektrischer Anschluss</th>
<td><span class="st-v">Klemmen</span></td>
</tr>
<tr>
<th scope="row">Messwerte</th>
<td><span class="st-v">Temperatur</span></td>
</tr>
<tr>
<th scope="row">Ausgangssignal</th>
<td>
<span class="st-v">0...5 V</span>
<span class="st-v">0...10 V</span>
<span class="st-v">2...10 V</span>
<span class="st-v">4...20 mA</span>
<span class="st-v">MP-Bus</span>
</td>
</tr>
<tr>
<th scope="row">Messbereich Temperatur</th>
<td><span class="st-v">0...50°C [32...122°F]</span></td>
</tr>
<tr>
<th scope="row">Kommunikation</th>
<td><span class="st-v">MP-Bus</span></td>
</tr>
<tr>
<th scope="row">Anzeige Typ</th>
<td><span class="st-v">Belimo Display App</span></td>
</tr>
</table>
</div>
</div>
<style>
.st-lieferumfang{
--st-accent:#00BAF2;
--st-ink:#32292F;
--st-muted:rgba(50,41,47,.62);
--st-line:rgba(50,41,47,.12);
--st-size:15px;
display:block;width:100%;max-width:100%;min-width:0;
font-family:inherit;color:var(--st-ink);font-size:var(--st-size);line-height:1.5;margin:0
}
.st-lieferumfang *{box-sizing:border-box}
.st-lieferumfang .st-note{display:block;padding:11px 14px;margin:0 0 14px;border-left:2px solid var(--st-accent);background:rgba(50,41,47,.04);border-radius:0 6px 6px 0;font-size:13.5px;line-height:1.45;color:var(--st-muted)}
.st-lieferumfang .st-note strong{color:var(--st-ink);font-weight:600}
.st-lieferumfang .st-note--warn{border-left-color:#E0A800;background:rgba(224,168,0,.08)}
.st-lieferumfang .st-lu-list{list-style:none;padding:0;margin:0}
.st-lieferumfang .st-lu-list li{display:flex;align-items:baseline;gap:14px;padding:11px 0;border-bottom:1px solid var(--st-line)}
.st-lieferumfang .st-lu-list li:last-child{border-bottom:none}
.st-lieferumfang .st-menge{flex:0 0 auto;min-width:38px;font-size:12px;font-weight:700;letter-spacing:.06em;color:var(--st-accent);font-variant-numeric:tabular-nums}
.st-lieferumfang .st-artikel{flex:1 1 auto;min-width:0;color:var(--st-ink)}
</style>
<div class="st-lieferumfang">
<ul class="st-lu-list">
<li><span class="st-menge">1x</span><span class="st-artikel">Belimo 22RT-18-1</span></li>
<li><span class="st-menge">1x</span><span class="st-artikel">Schrauben</span></li>
</ul>
</div>
<style>
.st-download-links{
--st-accent:#00BAF2;
--st-ink:#32292F;
--st-line:rgba(50,41,47,.18);
display:block;width:100%;max-width:100%;min-width:0;
font-family:inherit;color:var(--st-ink);margin:0
}
.st-download-links *{box-sizing:border-box}
.st-download-links .st-var+.st-var{margin-top:26px;padding-top:22px;border-top:1px solid rgba(50,41,47,.12)}
.st-download-links .st-var-title{font-size:17px;font-weight:800;letter-spacing:-.01em;color:var(--st-ink);margin:0 0 12px;padding:0;border:0}
.st-download-links .st-dl-grid{display:flex;flex-wrap:wrap;gap:9px;margin:0}
.st-download-links .st-dl{
display:inline-flex;align-items:center;gap:10px;max-width:100%;
padding:11px 17px;border:1px solid var(--st-line);border-radius:9px;background:#fff;
color:var(--st-ink);text-decoration:none;
font-size:11.5px;font-weight:600;letter-spacing:.07em;text-transform:uppercase;line-height:1.3;
transition:border-color .15s ease,color .15s ease,background-color .15s ease
}
.st-download-links .st-dl:hover,.st-download-links .st-dl:focus-visible{border-color:var(--st-accent);color:var(--st-accent);background:rgba(0,186,242,.05)}
.st-download-links .st-dl:focus-visible{outline:2px solid var(--st-accent);outline-offset:2px}
.st-download-links .st-dl-glyph{flex:0 0 auto;width:17px;height:17px}
.st-download-links .st-dl-name{min-width:0;overflow-wrap:anywhere}
.st-download-links .st-dl-fmt{flex:0 0 auto;padding-left:10px;border-left:1px solid rgba(50,41,47,.16);color:rgba(50,41,47,.42);font-weight:700}
.st-download-links .st-dl:hover .st-dl-fmt{border-left-color:rgba(0,186,242,.3)}
@media (max-width:480px){
.st-download-links .st-dl-grid{display:block}
.st-download-links .st-dl{display:flex;width:100%;margin-bottom:9px;padding:11px 14px}
.st-download-links .st-dl-name{flex:1 1 auto}
}
@media (prefers-reduced-motion:reduce){.st-download-links .st-dl{transition:none}}
</style>
<div class="st-download-links">
<div class="st-dl-grid">
<a class="st-dl" href="https://www.belimo.com/mam/general-documents/datasheets/de-ch/belimo_22RT..-18-1_datasheet_de-ch.pdf" target="_blank" rel="noopener noreferrer">
<svg class="st-dl-glyph" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round" aria-hidden="true"><path d="M6.8 16.5a3.9 3.9 0 0 1 .55-7.78 5.4 5.4 0 0 1 10.4 1.05A3.45 3.45 0 0 1 17.4 16.5"/><path d="M12 11.4v6.1m0 0 2.4-2.4M12 17.5l-2.4-2.4"/></svg>
<span class="st-dl-name">Datenblatt</span>
<span class="st-dl-fmt">PDF</span>
</a>
<a class="st-dl" href="https://www.belimo.com/mam/general-documents/installation-instructions/belimo_P-22RT..-1800.._22RT..-18-1_installation-instructions.pdf" target="_blank" rel="noopener noreferrer">
<svg class="st-dl-glyph" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round" aria-hidden="true"><path d="M6.8 16.5a3.9 3.9 0 0 1 .55-7.78 5.4 5.4 0 0 1 10.4 1.05A3.45 3.45 0 0 1 17.4 16.5"/><path d="M12 11.4v6.1m0 0 2.4-2.4M12 17.5l-2.4-2.4"/></svg>
<span class="st-dl-name">Montageanleitung</span>
<span class="st-dl-fmt">PDF</span>
</a>
<a class="st-dl" href="https://www.belimo.com/mam/general-documents/declarations/doc/belimo_DoC_EU_22RT-18-1.pdf" target="_blank" rel="noopener noreferrer">
<svg class="st-dl-glyph" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round" aria-hidden="true"><path d="M6.8 16.5a3.9 3.9 0 0 1 .55-7.78 5.4 5.4 0 0 1 10.4 1.05A3.45 3.45 0 0 1 17.4 16.5"/><path d="M12 11.4v6.1m0 0 2.4-2.4M12 17.5l-2.4-2.4"/></svg>
<span class="st-dl-name">Konformität</span>
<span class="st-dl-fmt">PDF</span>
</a>
<a class="st-dl" href="https://www.belimo.com/mam/general-documents/Datasheets%20ED/de-ch/belimo_01RT.._22RT.._EnvDeclaration_de-ch.pdf" target="_blank" rel="noopener noreferrer">
<svg class="st-dl-glyph" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round" aria-hidden="true"><path d="M6.8 16.5a3.9 3.9 0 0 1 .55-7.78 5.4 5.4 0 0 1 10.4 1.05A3.45 3.45 0 0 1 17.4 16.5"/><path d="M12 11.4v6.1m0 0 2.4-2.4M12 17.5l-2.4-2.4"/></svg>
<span class="st-dl-name">Umweltdeklaration</span>
<span class="st-dl-fmt">PDF</span>
</a>
<a class="st-dl" href="https://www.belimo.com/mam/global/technical-documentation/Operating_instructions/belimo_sensors-guide_DE_de-ch.pdf" target="_blank" rel="noopener noreferrer">
<svg class="st-dl-glyph" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round" aria-hidden="true"><path d="M6.8 16.5a3.9 3.9 0 0 1 .55-7.78 5.4 5.4 0 0 1 10.4 1.05A3.45 3.45 0 0 1 17.4 16.5"/><path d="M12 11.4v6.1m0 0 2.4-2.4M12 17.5l-2.4-2.4"/></svg>
<span class="st-dl-name">Handbuch Sensorinstallation</span>
<span class="st-dl-fmt">PDF</span>
</a>
<a class="st-dl" href="https://www.belimo.com/mam/europe/marketing_communication/brochures-and-flyers/sensors/eu_de-ch/belimo_sensors-meters_brochure_a4_emea_de-ch.pdf" target="_blank" rel="noopener noreferrer">
<svg class="st-dl-glyph" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round" aria-hidden="true"><path d="M6.8 16.5a3.9 3.9 0 0 1 .55-7.78 5.4 5.4 0 0 1 10.4 1.05A3.45 3.45 0 0 1 17.4 16.5"/><path d="M12 11.4v6.1m0 0 2.4-2.4M12 17.5l-2.4-2.4"/></svg>
<span class="st-dl-name">Broschüre Sensoren/Zähler</span>
<span class="st-dl-fmt">PDF</span>
</a>
<a class="st-dl" href="https://www.belimo.com/mam/europe/marketing_communication/brochures-and-flyers/sensors/eu_de-ch/belimo_room-units_flyer_a4_emea_de-ch.pdf" target="_blank" rel="noopener noreferrer">
<svg class="st-dl-glyph" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round" aria-hidden="true"><path d="M6.8 16.5a3.9 3.9 0 0 1 .55-7.78 5.4 5.4 0 0 1 10.4 1.05A3.45 3.45 0 0 1 17.4 16.5"/><path d="M12 11.4v6.1m0 0 2.4-2.4M12 17.5l-2.4-2.4"/></svg>
<span class="st-dl-name">Flyer Raumgeräte</span>
<span class="st-dl-fmt">PDF</span>
</a>
<a class="st-dl" href="https://www.belimo.com/de/de_CH/support-eu/support-services/ppc" target="_blank" rel="noopener noreferrer">
<svg class="st-dl-glyph" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round" aria-hidden="true"><path d="M14 4h6v6"/><path d="M20 4 10.5 13.5"/><path d="M18 14.5V19a2 2 0 0 1-2 2H5a2 2 0 0 1-2-2V8a2 2 0 0 1 2-2h4.5"/></svg>
<span class="st-dl-name">Preiskatalog</span>
<span class="st-dl-fmt">LINK</span>
</a>
</div>
</div>
<p><strong>Sicherheitsinformationen:</strong></p>
<ul class="wp-block-list">
<li>Lesen Sie die Gebrauchsanweisung vor der Verwendung</li>
<li>Die Installation darf nur durch autorisiertes Fachpersonal erfolgen</li>
</ul>
<p><strong>Herstellerinformationen:</strong></p>
<ul class="wp-block-list">
<li><strong>Hersteller: </strong>BELIMO Stellantriebe Vertriebs GmbH</li>
<li><strong>Adresse:</strong> Rita-Maiburg-Straße 30, 70794 Filderstadt, Deutschland</li>
<li><strong>E-Mail: </strong>info@belimo.de</li>
</ul>
