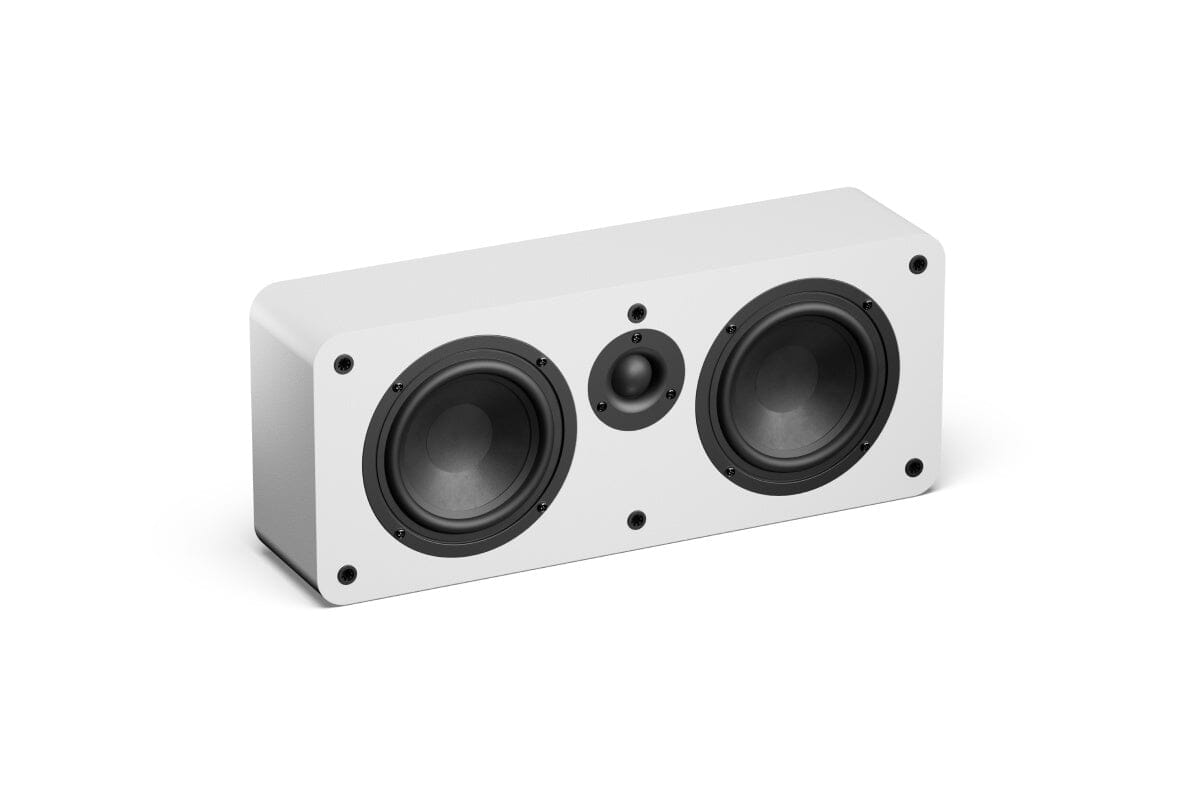

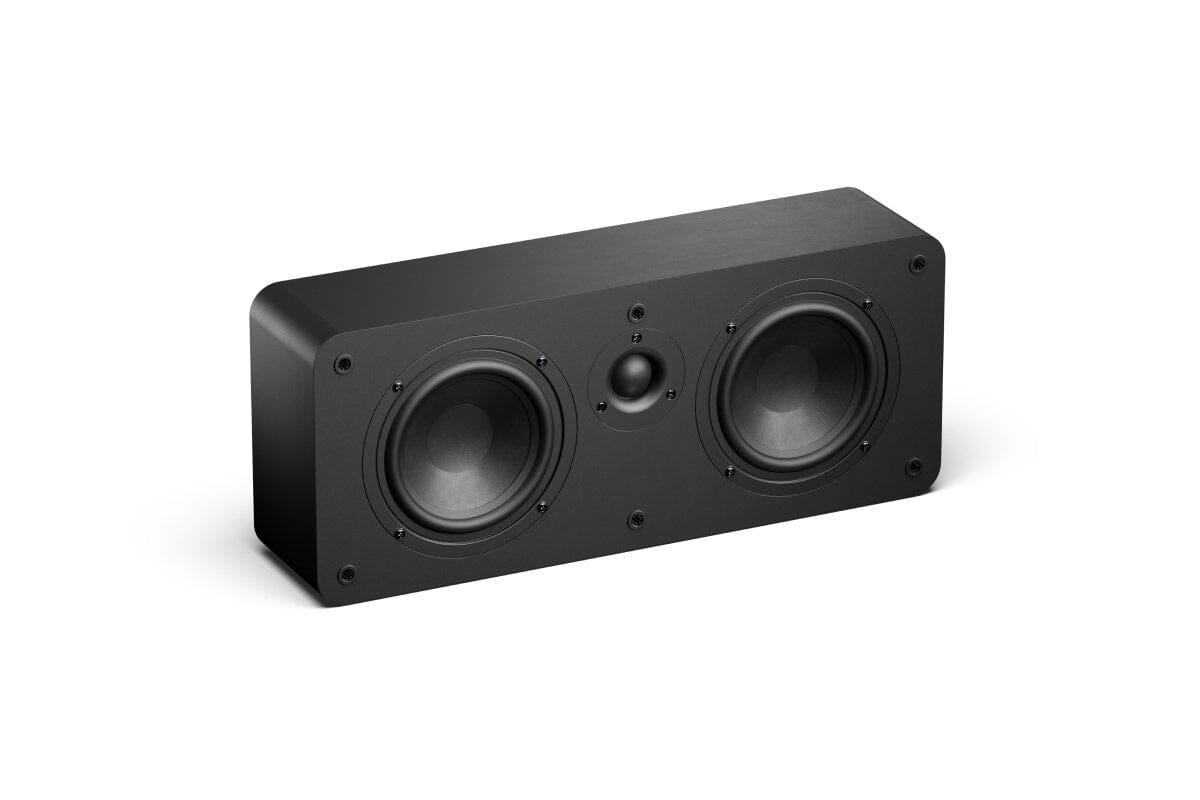

Passiver Zweiwege-Lautsprecher für die Wand
Der WALL Speaker ist ein passiver Zweiwege-Lautsprecher mit integrierter Aufhängung, der sich senkrecht wie waagerecht montieren lässt. Loxone empfiehlt die Wandmontage, dort spielt er am besten. Die Tieftönermembran besteht aus faserverstärktem Kraftpapier, das bei geringem Gewicht steif bleibt und die Verzerrungen niedrig hält. Eine zusätzliche Passiv-Membran hebt den Bassbereich. Die Front trägt inzwischen ein Schutzgitter statt der früheren Stoffbespannung.
Leistungsdaten und Anschluss
Der Lautsprecher braucht einen vorhandenen Verstärker, etwa den Loxone Audioserver.
- Nennimpedanz 8 Ohm
- Belastbarkeit der Anschlüsse 50 W, Maximalbelastbarkeit 80 W
- Empfindlichkeit 86 dB
- Übertragungsbereich 50 bis 25.000 Hz, Übergangsfrequenz 2,2 kHz
- Tieftönermembran aus faserverstärktem Kraftpapier, Hochtönerkalotte aus Seide
- Schutzklasse IP20
- Umgebungstemperatur -30 bis 70 °C
- Abmessungen 440 x 180 x 112 mm, Gewicht 3,75 kg
Ausschreibungstext
Passiver Zweiwege-Wandlautsprecher mit Passiv-Membran, Nennimpedanz 8 Ohm, Belastbarkeit 50 W, Maximalbelastbarkeit 80 W, Empfindlichkeit 86 dB, Übertragungsbereich 50 bis 25.000 Hz, Übergangsfrequenz 2,2 kHz. Tieftönermembran aus faserverstärktem Kraftpapier, Hochtönerkalotte aus Seide, Front mit Schutzgitter. Integrierte Aufhängung für senkrechte oder waagerechte Wandmontage, Abmessungen 440 x 180 x 112 mm, Schutzklasse IP20.
<style>
.st-specs{
--st-accent:#00BAF2;
--st-ink:#32292F;
--st-muted:rgba(50,41,47,.62);
--st-line:rgba(50,41,47,.12);
--st-size:15px;
display:block;width:100%;max-width:100%;min-width:0;
font-family:inherit;color:var(--st-ink);font-size:var(--st-size);line-height:1.5;margin:0
}
.st-specs *{box-sizing:border-box}
.st-specs .st-var+.st-var{margin-top:34px;padding-top:28px;border-top:1px solid var(--st-line)}
.st-specs .st-var-title{font-size:17px;font-weight:800;letter-spacing:-.01em;color:var(--st-ink);margin:0 0 18px;padding:0;border:0}
.st-specs .st-sec{margin:0 0 22px}
.st-specs .st-sec:last-child{margin-bottom:0}
.st-specs .st-sec-title{display:flex;align-items:center;gap:8px;font-size:11px;font-weight:700;letter-spacing:.14em;text-transform:uppercase;color:var(--st-ink);margin:0 0 2px;padding:0;border:0}
.st-specs .st-sec-title::before{content:"";flex:0 0 auto;width:14px;height:2px;background:var(--st-accent)}
.st-specs table{width:100%;border-collapse:collapse;margin:0}
.st-specs th,.st-specs td{text-align:left;vertical-align:top;padding:10px 0;border-bottom:1px solid var(--st-line)}
.st-specs th{width:41%;padding-right:16px;font-weight:600;color:var(--st-ink);font-size:14px}
.st-specs td{color:var(--st-muted)}
.st-specs .st-v{display:block}
.st-specs .st-v+.st-v{margin-top:6px}
.st-specs .st-k{display:block;font-size:11px;font-weight:600;letter-spacing:.06em;text-transform:uppercase;color:rgba(50,41,47,.45);margin-bottom:1px}
.st-specs img{max-width:200px;height:auto;margin-top:4px}
@media (max-width:600px){
.st-specs tr{display:block;padding:9px 0;border-bottom:1px solid var(--st-line)}
.st-specs th,.st-specs td{display:block;width:auto;padding:0;border:0}
.st-specs th{margin-bottom:2px}
}
</style>
<div class="st-specs">
<div class="st-sec">
<h3 class="st-sec-title">Audio-Spezifikationen</h3>
<table>
<tr><th scope="row">Lautsprecher Typ</th><td><span class="st-v">2-Wege</span></td></tr>
<tr><th scope="row">Übertragungsbereich</th><td><span class="st-v">50 … 25.000 Hz</span></td></tr>
<tr><th scope="row">Nennimpedanz</th><td><span class="st-v">8 Ohm</span></td></tr>
<tr><th scope="row">Tieftöner-Membranmaterial</th><td><span class="st-v">Faserverstärktes Kraftpapier</span></td></tr>
</table>
</div>
<div class="st-sec">
<h3 class="st-sec-title">Technische Daten</h3>
<table>
<tr><th scope="row">Belastbarkeit der Anschlüsse</th><td><span class="st-v">50 W</span></td></tr>
<tr><th scope="row">Maximalbelastbarkeit</th><td><span class="st-v">80 W</span></td></tr>
<tr><th scope="row">Übergangsfrequenz</th><td><span class="st-v">2,2 kHz</span></td></tr>
<tr><th scope="row">Empfindlichkeit</th><td><span class="st-v">86 dB</span></td></tr>
<tr><th scope="row">Hochtöner-Kalottenmaterial</th><td><span class="st-v">Seide</span></td></tr>
</table>
</div>
<div class="st-sec">
<h3 class="st-sec-title">Umgebungsbedingungen</h3>
<table>
<tr><th scope="row">Temperatur</th><td><span class="st-v">-30 … 70 °C / -22 … 158 °F</span></td></tr>
<tr><th scope="row">Luftfeuchtigkeit</th><td><span class="st-v">max. 95 % r. F. (nicht kondensierend)</span></td></tr>
</table>
</div>
<div class="st-sec">
<h3 class="st-sec-title">Frequenzbereich</h3>
<table>
<tr><th scope="row">Frequenzgang Diagramm</th><td><span class="st-v"><img src="https://pim.loxone.com/01%20Product%20Data/05%20Product%20Specifications/Frequency%20Response/610001%2C610141%20-%20WALL%20Speaker.png" alt="Frequenzgang Diagramm" loading="lazy"></span></td></tr>
</table>
</div>
<div class="st-sec">
<h3 class="st-sec-title">Anschlussplan</h3>
<table>
<tr><th scope="row">Anschlussplan</th><td><span class="st-v"><img src="https://pim.loxone.com/01%20Product%20Data/05%20Product%20Specifications/Connection%20Diagram/Speaker/610001%2C610141%20-%20WALL%20Speaker.png" alt="Anschlussplan" loading="lazy"></span></td></tr>
</table>
</div>
<div class="st-sec">
<h3 class="st-sec-title">Gewicht & Abmessungen</h3>
<table>
<tr><th scope="row">Produktmaße</th><td>
<span class="st-v">440 mm x 180 mm x 112 mm / 17.32" x 7.09" x 4.41"</span>
<span class="st-v">510 mm x 257 mm x 184 mm / 20.08" x 10.12" x 7.24"</span>
</td></tr>
<tr><th scope="row">Produktgewicht</th><td><span class="st-v">3,75 kg / 8.27 lbs</span></td></tr>
<tr><th scope="row">Bruttogewicht</th><td><span class="st-v">4,75 kg / 10.47 lbs</span></td></tr>
<tr><th scope="row">Produktmaßzeichnung</th><td><span class="st-v"><img src="https://pim.loxone.com/01%20Product%20Data/05%20Product%20Specifications/Product%20Dimensions%20Drawing/Speaker/WALL%20Speaker.png" alt="Produktmaßzeichnung" loading="lazy"></span></td></tr>
</table>
</div>
<div class="st-sec">
<h3 class="st-sec-title">Zertifizierungen & Standards</h3>
<table>
<tr><th scope="row">Schutzklasse</th><td><span class="st-v">IP20</span></td></tr>
</table>
</div>
</div>
<style>
.st-lieferumfang{
--st-accent:#00BAF2;
--st-ink:#32292F;
--st-muted:rgba(50,41,47,.62);
--st-line:rgba(50,41,47,.12);
--st-size:15px;
display:block;width:100%;max-width:100%;min-width:0;
font-family:inherit;color:var(--st-ink);font-size:var(--st-size);line-height:1.5;margin:0
}
.st-lieferumfang *{box-sizing:border-box}
.st-lieferumfang .st-note{display:block;padding:11px 14px;margin:0 0 14px;border-left:2px solid var(--st-accent);background:rgba(50,41,47,.04);border-radius:0 6px 6px 0;font-size:13.5px;line-height:1.45;color:var(--st-muted)}
.st-lieferumfang .st-note strong{color:var(--st-ink);font-weight:600}
.st-lieferumfang .st-note--warn{border-left-color:#E0A800;background:rgba(224,168,0,.08)}
.st-lieferumfang .st-lu-list{list-style:none;padding:0;margin:0}
.st-lieferumfang .st-lu-list li{display:flex;align-items:baseline;gap:14px;padding:11px 0;border-bottom:1px solid var(--st-line)}
.st-lieferumfang .st-lu-list li:last-child{border-bottom:none}
.st-lieferumfang .st-menge{flex:0 0 auto;min-width:38px;font-size:12px;font-weight:700;letter-spacing:.06em;color:var(--st-accent);font-variant-numeric:tabular-nums}
.st-lieferumfang .st-artikel{flex:1 1 auto;min-width:0;color:var(--st-ink)}
</style>
<div class="st-lieferumfang">
<ul class="st-lu-list">
<li><span class="st-menge">1x</span><span class="st-artikel">WALL Speaker</span></li>
<li><span class="st-menge">1x</span><span class="st-artikel">Frontabdeckung</span></li>
<li><span class="st-menge">1x</span><span class="st-artikel">Montageschablone</span></li>
<li><span class="st-menge">1x</span><span class="st-artikel">Schraubenabdeckung</span></li>
</ul>
</div>
