Zutritt per Schlüsselanhänger

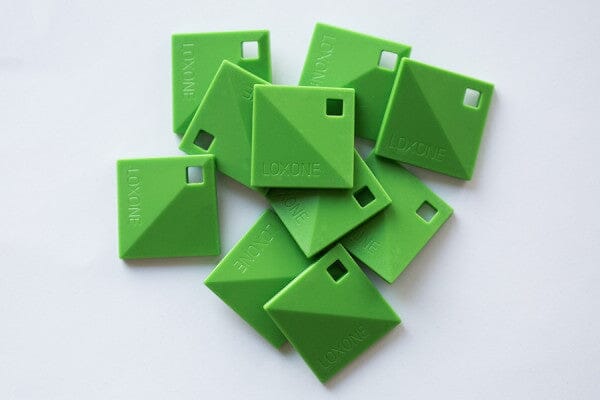

Das Loxone NFC Key Fob Set enthält zehn Schlüsselanhänger für die Zutrittskontrolle über den NFC Code Touch. Jeder Anhänger misst 30 x 30 x 6 Millimeter, besteht aus PC/ABS und wird auf einen Abstand von 1 bis 20 Millimetern gelesen.
Chipsatz und Verschlüsselung
Im Anhänger sitzt ein NXP MIFARE DESFire EV3 2K, der auf 13,56 MHz verschlüsselt überträgt. Zum Einsatz kommen AES mit 128 Bit und DES mit bis zu 168 Bit, dazu eine zufällige Schlüsselgenerierung. Hardware und Software tragen ein Common-Criteria-Zertifikat EAL4+.
- Chipsatz NXP MIFARE DESFire EV3 2K
- Frequenz 13,56 MHz, verschlüsselt
- Reichweite 1 bis 20 mm
- Standards ISO 14443 und ISO 7816
- Speicherkapazität 2048 Byte
- Material PC/ABS
- Größe 30 x 30 x 6 mm
Ausschreibungstext
Set aus zehn NFC-Schlüsselanhängern mit Chipsatz NXP MIFARE DESFire EV3 2K, Frequenz 13,56 MHz, Speicherkapazität 2048 Byte und Verschlüsselung nach AES 128 Bit. Leseabstand 1 bis 20 mm, Gehäuse aus PC/ABS mit 30 x 30 x 6 mm, geeignet für den Loxone NFC Code Touch.
<style>
.st-specs{
--st-accent:#00BAF2;
--st-ink:#32292F;
--st-muted:rgba(50,41,47,.62);
--st-line:rgba(50,41,47,.12);
--st-size:15px;
display:block;width:100%;max-width:100%;min-width:0;
font-family:inherit;color:var(--st-ink);font-size:var(--st-size);line-height:1.5;margin:0
}
.st-specs *{box-sizing:border-box}
.st-specs .st-var+.st-var{margin-top:34px;padding-top:28px;border-top:1px solid var(--st-line)}
.st-specs .st-var-title{font-size:17px;font-weight:800;letter-spacing:-.01em;color:var(--st-ink);margin:0 0 18px;padding:0;border:0}
.st-specs .st-sec{margin:0 0 22px}
.st-specs .st-sec:last-child{margin-bottom:0}
.st-specs .st-sec-title{display:flex;align-items:center;gap:8px;font-size:11px;font-weight:700;letter-spacing:.14em;text-transform:uppercase;color:var(--st-ink);margin:0 0 2px;padding:0;border:0}
.st-specs .st-sec-title::before{content:"";flex:0 0 auto;width:14px;height:2px;background:var(--st-accent)}
.st-specs table{width:100%;border-collapse:collapse;margin:0}
.st-specs th,.st-specs td{text-align:left;vertical-align:top;padding:10px 0;border-bottom:1px solid var(--st-line)}
.st-specs th{width:41%;padding-right:16px;font-weight:600;color:var(--st-ink);font-size:14px}
.st-specs td{color:var(--st-muted)}
.st-specs .st-v{display:block}
.st-specs .st-v+.st-v{margin-top:6px}
.st-specs .st-k{display:block;font-size:11px;font-weight:600;letter-spacing:.06em;text-transform:uppercase;color:rgba(50,41,47,.45);margin-bottom:1px}
.st-specs img{max-width:200px;height:auto;margin-top:4px}
@media (max-width:600px){
.st-specs tr{display:block;padding:9px 0;border-bottom:1px solid var(--st-line)}
.st-specs th,.st-specs td{display:block;width:auto;padding:0;border:0}
.st-specs th{margin-bottom:2px}
}
</style>
<div class="st-specs">
<div class="st-sec">
<h3 class="st-sec-title">Technische Details</h3>
<table>
<tr><th scope="row">Chipsatz</th><td><span class="st-v">NXP MIFARE® DESFire® EV3 2K</span></td></tr>
<tr><th scope="row">Reichweite</th><td><span class="st-v">1 … 20 mm / 0,04 … 0,79"</span></td></tr>
<tr><th scope="row">Frequenz</th><td><span class="st-v">13,56 MHz (verschlüsselt)</span></td></tr>
<tr><th scope="row">Standards</th><td><span class="st-v">ISO/IEC-Unterstützung: ISO 14443; ISO 7816</span></td></tr>
<tr><th scope="row">Verschlüsselung</th><td>
<span class="st-v">16 bzw. 32 bit CRC</span>
<span class="st-v">Common Criteria Zertifikat EAL4+ (Hardware und Software)</span>
<span class="st-v">zufällige Schlüsselgenerierung</span>
<span class="st-v">DES mit bis zu 168 bit und AES mit 128 bit-Verschlüsselung</span>
</td></tr>
<tr><th scope="row">Speicherkapazität</th><td><span class="st-v">2048 Byte</span></td></tr>
<tr><th scope="row">Material</th><td><span class="st-v">PC/ABS</span></td></tr>
<tr><th scope="row">Größe</th><td><span class="st-v">30 x 30 x 6 mm / 1,18 x 1,18 x 0,24"</span></td></tr>
</table>
</div>
</div>
<style>
.st-lieferumfang{
--st-accent:#00BAF2;
--st-ink:#32292F;
--st-muted:rgba(50,41,47,.62);
--st-line:rgba(50,41,47,.12);
--st-size:15px;
display:block;width:100%;max-width:100%;min-width:0;
font-family:inherit;color:var(--st-ink);font-size:var(--st-size);line-height:1.5;margin:0
}
.st-lieferumfang *{box-sizing:border-box}
.st-lieferumfang .st-note{display:block;padding:11px 14px;margin:0 0 14px;border-left:2px solid var(--st-accent);background:rgba(50,41,47,.04);border-radius:0 6px 6px 0;font-size:13.5px;line-height:1.45;color:var(--st-muted)}
.st-lieferumfang .st-note strong{color:var(--st-ink);font-weight:600}
.st-lieferumfang .st-note--warn{border-left-color:#E0A800;background:rgba(224,168,0,.08)}
.st-lieferumfang .st-lu-list{list-style:none;padding:0;margin:0}
.st-lieferumfang .st-lu-list li{display:flex;align-items:baseline;gap:14px;padding:11px 0;border-bottom:1px solid var(--st-line)}
.st-lieferumfang .st-lu-list li:last-child{border-bottom:none}
.st-lieferumfang .st-menge{flex:0 0 auto;min-width:38px;font-size:12px;font-weight:700;letter-spacing:.06em;color:var(--st-accent);font-variant-numeric:tabular-nums}
.st-lieferumfang .st-artikel{flex:1 1 auto;min-width:0;color:var(--st-ink)}
</style>
<div class="st-lieferumfang">
<ul class="st-lu-list">

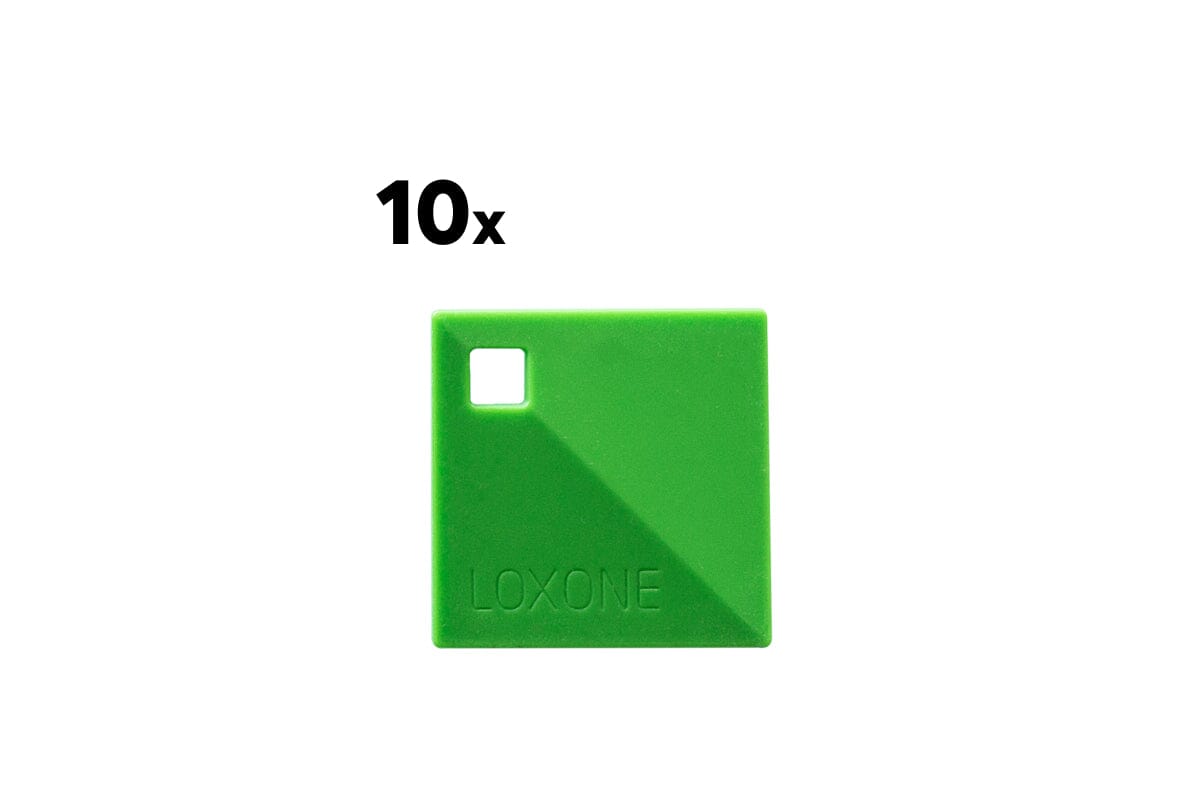

<li><span class="st-menge">10x</span><span class="st-artikel">NFC Key Fob</span></li>
</ul>
</div>
<style>
.st-download-links{
--st-accent:#00BAF2;
--st-ink:#32292F;
--st-line:rgba(50,41,47,.18);
display:block;width:100%;max-width:100%;min-width:0;
font-family:inherit;color:var(--st-ink);margin:0
}
.st-download-links *{box-sizing:border-box}
.st-download-links .st-var+.st-var{margin-top:26px;padding-top:22px;border-top:1px solid rgba(50,41,47,.12)}
.st-download-links .st-var-title{font-size:17px;font-weight:800;letter-spacing:-.01em;color:var(--st-ink);margin:0 0 12px;padding:0;border:0}
.st-download-links .st-dl-grid{display:flex;flex-wrap:wrap;gap:9px;margin:0}
.st-download-links .st-dl{
display:inline-flex;align-items:center;gap:10px;max-width:100%;
padding:11px 17px;border:1px solid var(--st-line);border-radius:9px;background:#fff;
color:var(--st-ink);text-decoration:none;
font-size:11.5px;font-weight:600;letter-spacing:.07em;text-transform:uppercase;line-height:1.3;
transition:border-color .15s ease,color .15s ease,background-color .15s ease
}
.st-download-links .st-dl:hover,.st-download-links .st-dl:focus-visible{border-color:var(--st-accent);color:var(--st-accent);background:rgba(0,186,242,.05)}
.st-download-links .st-dl:focus-visible{outline:2px solid var(--st-accent);outline-offset:2px}
.st-download-links .st-dl-glyph{flex:0 0 auto;width:17px;height:17px}
.st-download-links .st-dl-name{min-width:0;overflow-wrap:anywhere}
.st-download-links .st-dl-fmt{flex:0 0 auto;padding-left:10px;border-left:1px solid rgba(50,41,47,.16);color:rgba(50,41,47,.42);font-weight:700}
.st-download-links .st-dl:hover .st-dl-fmt{border-left-color:rgba(0,186,242,.3)}
@media (max-width:480px){
.st-download-links .st-dl-grid{display:block}
.st-download-links .st-dl{display:flex;width:100%;margin-bottom:9px;padding:11px 14px}
.st-download-links .st-dl-name{flex:1 1 auto}
}
@media (prefers-reduced-motion:reduce){.st-download-links .st-dl{transition:none}}
</style>
<div class="st-download-links">
<div class="st-dl-grid">
<a class="st-dl" href="https://pim.loxone.com/01%20Product%20Data/01%20Products/Access/200318%20-%20NFC%20Key%20Fob%20Set%20-%2010%20St%C3%BCck/Specifications/Declaration%20of%20conformity.pdf" target="_blank" rel="noopener noreferrer">
<svg class="st-dl-glyph" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round" aria-hidden="true"><path d="M6.8 16.5a3.9 3.9 0 0 1 .55-7.78 5.4 5.4 0 0 1 10.4 1.05A3.45 3.45 0 0 1 17.4 16.5"/><path d="M12 11.4v6.1m0 0 2.4-2.4M12 17.5l-2.4-2.4"/></svg>
<span class="st-dl-name">Konformitätserklärung</span>
<span class="st-dl-fmt">PDF</span>
</a>
<a class="st-dl" href="https://pim.loxone.com/01%20Product%20Data/01%20Products/Access/200318%20-%20NFC%20Key%20Fob%20Set%20-%2010%20St%C3%BCck/Specifications/Declaration%20of%20conformity%20CZ.pdf" target="_blank" rel="noopener noreferrer">
<svg class="st-dl-glyph" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round" aria-hidden="true"><path d="M6.8 16.5a3.9 3.9 0 0 1 .55-7.78 5.4 5.4 0 0 1 10.4 1.05A3.45 3.45 0 0 1 17.4 16.5"/><path d="M12 11.4v6.1m0 0 2.4-2.4M12 17.5l-2.4-2.4"/></svg>
<span class="st-dl-name">Konformität CZ</span>
<span class="st-dl-fmt">PDF</span>
</a>
<a class="st-dl" href="https://pim.loxone.com/01%20Product%20Data/01%20Products/Access/200318%20-%20NFC%20Key%20Fob%20Set%20-%2010%20St%C3%BCck/Specifications/Declaration%20of%20conformity%20PL.pdf" target="_blank" rel="noopener noreferrer">
<svg class="st-dl-glyph" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round" aria-hidden="true"><path d="M6.8 16.5a3.9 3.9 0 0 1 .55-7.78 5.4 5.4 0 0 1 10.4 1.05A3.45 3.45 0 0 1 17.4 16.5"/><path d="M12 11.4v6.1m0 0 2.4-2.4M12 17.5l-2.4-2.4"/></svg>
<span class="st-dl-name">Konformität PL</span>
<span class="st-dl-fmt">PDF</span>
</a>
</div>
</div>
<p><strong>Sicherheitsinformationen:</strong></p>
<ul class="wp-block-list">
<li>Lesen Sie die Gebrauchsanweisung vor der Verwendung</li>
</ul>
<p><strong>Herstellerinformationen:</strong></p>
<ul class="wp-block-list">
<li><strong>Hersteller: </strong>Loxone Electronics GmbH</li>
<li><strong>Adresse:</strong> Smart Home 1, 4154 Kollerschlag Österreich</li>
<li><strong>E-Mail: </strong><a href="mailto:office@loxone.com">office@loxone.com</a></li>
</ul>
