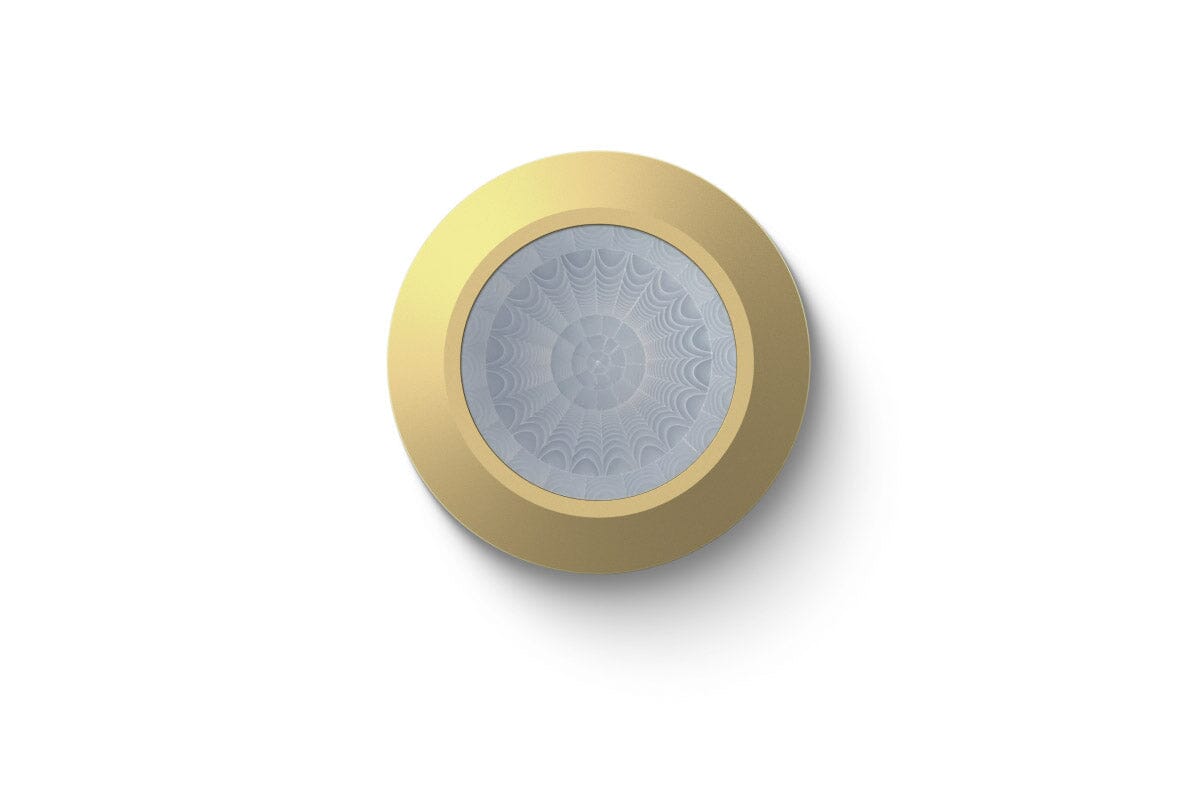

Präsenzmelder bündig in der Decke
Der Präsenzmelder Deckeneinbau Tree verschwindet in der abgehängten Decke und zeigt nur den Frontring von 86 mm Außendurchmesser. Erforderlich sind eine Bohrung von 68 bis 72 mm und 40 mm Einbautiefe. Er erfasst Präsenz, Bewegung und Helligkeit, dazu kommt ein Akustiksensor. Der passive Infrarotsensor deckt horizontal 360 Grad ab, vertikal 110 Grad, die Reichweite beträgt 8 m bei 3 m Montagehöhe. Laut Hersteller passt die Bauform optisch zu den LOXONE LED Spots.
Anschluss und Einbau
Die Versorgung läuft über den Tree-Bus, vier Verbindungsklemmen liegen bei.
- Versorgungsspannung 9 bis 30 V DC
- Leistungsaufnahme typisch 0,25 W
- Erfassungswinkel 360 Grad horizontal, 110 Grad vertikal
- Reichweite 8 m bei 3 m Montagehöhe
- Empfohlene Montagehöhe 2,5 bis 3,5 m, maximal 3,5 m
- Helligkeitssensor 0 bis 32.000 lx
- Akustische Erkennung 60 Hz bis 20 kHz, mono
- Frontring 86 mm, Einbautiefe 40 mm, Lochdurchmesser 68 bis 72 mm
- Anschlussleitung 200 mm, 0,75 mm²
- Schutzart IP20, Betriebstemperatur -25 bis 70 °C
Einsatz im Projekt
Der Akustiksensor erweitert die Auswertung über die reine Bewegung hinaus. Die Nachlaufzeit verlängert sich, solange Geräusche im Raum auftreten, auch wenn niemand sich bewegt. Nach dem Ende der Präsenz lässt sich diese innerhalb von 10 Sekunden durch ein Geräusch wieder aktivieren. Überschreitet der Geräuschpegel eine eingestellte Schwelle, schaltet der Alarmausgang.
Ausschreibungstext
Präsenzmelder für Deckeneinbau mit LOXONE Tree Anbindung, passivem Infrarotsensor, Helligkeitssensor und Akustiksensor. Erfassungswinkel 360 Grad horizontal und 110 Grad vertikal, Reichweite 8 m bei 3 m Montagehöhe, Helligkeitsmessbereich 0 bis 32.000 lx. Versorgung 9 bis 30 V DC, Leistungsaufnahme typisch 0,25 W, Schutzart IP20. Frontring 86 mm, Einbautiefe 40 mm, Lochdurchmesser 68 bis 72 mm. Gehäuse matt in Weiß RAL 9003, Anthrazit RAL 7021 oder Gold.
<style>
.st-specs{
--st-accent:#00BAF2;
--st-ink:#32292F;
--st-muted:rgba(50,41,47,.62);
--st-line:rgba(50,41,47,.12);
--st-size:15px;
display:block;width:100%;max-width:100%;min-width:0;
font-family:inherit;color:var(--st-ink);font-size:var(--st-size);line-height:1.5;margin:0
}
.st-specs *{box-sizing:border-box}
.st-specs .st-var+.st-var{margin-top:34px;padding-top:28px;border-top:1px solid var(--st-line)}
.st-specs .st-var-title{font-size:17px;font-weight:800;letter-spacing:-.01em;color:var(--st-ink);margin:0 0 18px;padding:0;border:0}
.st-specs .st-sec{margin:0 0 22px}
.st-specs .st-sec:last-child{margin-bottom:0}
.st-specs .st-sec-title{display:flex;align-items:center;gap:8px;font-size:11px;font-weight:700;letter-spacing:.14em;text-transform:uppercase;color:var(--st-ink);margin:0 0 2px;padding:0;border:0}
.st-specs .st-sec-title::before{content:"";flex:0 0 auto;width:14px;height:2px;background:var(--st-accent)}
.st-specs table{width:100%;border-collapse:collapse;margin:0}
.st-specs th,.st-specs td{text-align:left;vertical-align:top;padding:10px 0;border-bottom:1px solid var(--st-line)}
.st-specs th{width:41%;padding-right:16px;font-weight:600;color:var(--st-ink);font-size:14px}
.st-specs td{color:var(--st-muted)}
.st-specs .st-v{display:block}
.st-specs .st-v+.st-v{margin-top:6px}
.st-specs .st-k{display:block;font-size:11px;font-weight:600;letter-spacing:.06em;text-transform:uppercase;color:rgba(50,41,47,.45);margin-bottom:1px}
.st-specs img{max-width:200px;height:auto;margin-top:4px}
@media (max-width:600px){
.st-specs tr{display:block;padding:9px 0;border-bottom:1px solid var(--st-line)}
.st-specs th,.st-specs td{display:block;width:auto;padding:0;border:0}
.st-specs th{margin-bottom:2px}
}
</style>
<div class="st-specs">
<div class="st-sec">
<h3 class="st-sec-title">Elektrische Spezifikationen</h3>
<table>
<tr><th scope="row">Versorgungsspannung</th><td><span class="st-v">9 … 30 V DC</span></td></tr>
<tr><th scope="row">Leistungsaufnahme</th><td><span class="st-v">typ. 0,25 W</span></td></tr>
<tr><th scope="row">Verlustleistung</th><td><span class="st-v">max. 0,25 W</span></td></tr>
<tr><th scope="row">Temperatur</th><td><span class="st-v">-25 … 70 °C / -13 … 158 °F</span></td></tr>
<tr><th scope="row">Bewegungserkennung</th><td><span class="st-v">passiver Infrarotsensor</span></td></tr>
<tr><th scope="row">Reichweite der Bewegungserkennung</th><td><span class="st-v">8 m / 26,25 ft (in 3 m / 9,84 ft Höhe)</span></td></tr>
<tr><th scope="row">Empfohlene Montagehöhe</th><td><span class="st-v">2,5 … 3,5 m / 8,2 … 11,5 ft</span></td></tr>
<tr><th scope="row">Einbauhöhe</th><td><span class="st-v">max. 3,5 m / 11,5 ft</span></td></tr>
<tr><th scope="row">Erfassungswinkel vertikal</th><td><span class="st-v">110°</span></td></tr>
<tr><th scope="row">Erfassungswinkel horizontal</th><td><span class="st-v">360°</span></td></tr>
<tr><th scope="row">Messbereich Helligkeitssensor</th><td><span class="st-v">0 … 32.000 lx</span></td></tr>
<tr><th scope="row">Akustische Erkennung</th><td><span class="st-v">60 Hz … 20 kHz, mono</span></td></tr>
</table>
</div>
<div class="st-sec">
<h3 class="st-sec-title">Umgebungsbedingungen</h3>
<table>
<tr><th scope="row">Luftfeuchtigkeit</th><td><span class="st-v">max. 95 % r.H. (nicht kondensierend)</span></td></tr>
</table>
</div>
<div class="st-sec">
<h3 class="st-sec-title">Anschlüsse</h3>
<table>
<tr><th scope="row">Leiterquerschnitt</th><td>
<span class="st-v"><span class="st-k">Anschlussleitung</span>0,75 mm² / AWG 18</span>
<span class="st-v"><span class="st-k">Anschlussklemmen</span>0,14 … 4 mm² / AWG 24 … 12</span>
</td></tr>
<tr><th scope="row">Abisolierlänge</th><td>
<span class="st-v"><span class="st-k">Anschlussleitung</span>11 mm / 0,43"</span>
<span class="st-v"><span class="st-k">Anschlussklemmen</span>11 mm / 0,43"</span>
</td></tr>
<tr><th scope="row">Temperaturbeständigkeit</th><td>
<span class="st-v"><span class="st-k">Anschlussleitung</span>max. 70 °C / 158 °F</span>
<span class="st-v"><span class="st-k">Anschlussklemmen</span>max. 85 °C / 185 °F</span>
</td></tr>
<tr><th scope="row">Länge</th><td>
<span class="st-v"><span class="st-k">Anschlussleitung</span>200 mm / 7,87"</span>
</td></tr>
</table>
</div>
<div class="st-sec">
<h3 class="st-sec-title">Anschlussplan</h3>
<table>
<tr><th scope="row">Anschlussplan</th><td><span class="st-v"><img src="https://pim.loxone.com/01%20Product%20Data/05%20Product%20Specifications/Connection%20Diagram/100466%2C100467%2C100498%20-Flush-mounted%20Presence%20Sensor%20Tree.png" alt="Anschlussplan" loading="lazy"></span></td></tr>
</table>
</div>
<div class="st-sec">
<h3 class="st-sec-title">Produkteigenschaften</h3>
<table>
<tr><th scope="row">Farbe</th><td>
<span class="st-v"><span class="st-k">Weiß</span>RAL 9003</span>
<span class="st-v"><span class="st-k">Anthrazit</span>RAL 7021</span>
<span class="st-v"><span class="st-k">Gold</span>ähnlich zu RAL 1036</span>
</td></tr>
<tr><th scope="row">Glanzgrad</th><td><span class="st-v">Matt</span></td></tr>
</table>
</div>
<div class="st-sec">
<h3 class="st-sec-title">Gewicht & Abmessungen</h3>
<table>
<tr><th scope="row">Nettogewicht</th><td><span class="st-v">150 g</span></td></tr>
<tr><th scope="row">Bruttogewicht</th><td><span class="st-v">250 g</span></td></tr>
<tr><th scope="row">Produktmaße</th><td>
<span class="st-v"><span class="st-k">Außendurchmesser Frontring</span>86 mm (3,39")</span>
<span class="st-v"><span class="st-k">Einbautiefe</span>40 mm (1,57")</span>
<span class="st-v"><span class="st-k">Lochdurchmesser</span>68 … 72 mm (2,68 … 2,83")</span>
</td></tr>
<tr><th scope="row">Produktmaßzeichnung</th><td><span class="st-v"><img src="https://pim.loxone.com/01%20Product%20Data/05%20Product%20Specifications/Product%20Dimensions%20Drawing/100466%2C100467%2C100498%20-%20Flush-mounted%20Presence%20Sensor%20Tree.png" alt="Produktmaßzeichnung" loading="lazy"></span></td></tr>
<tr><th scope="row">Packmaß</th><td><span class="st-v">98 x 90 x 33 mm / 3,86 x 3,54 x 1,30” (L x B x H)</span></td></tr>
</table>
</div>
<div class="st-sec">
<h3 class="st-sec-title">Zertifizierungen & Standards</h3>
<table>
<tr><th scope="row">Schutzklasse</th><td><span class="st-v">IP20</span></td></tr>
</table>
</div>
</div>
<style>
.st-lieferumfang{
--st-accent:#00BAF2;
--st-ink:#32292F;
--st-muted:rgba(50,41,47,.62);
--st-line:rgba(50,41,47,.12);
--st-size:15px;
display:block;width:100%;max-width:100%;min-width:0;
font-family:inherit;color:var(--st-ink);font-size:var(--st-size);line-height:1.5;margin:0
}
.st-lieferumfang *{box-sizing:border-box}
.st-lieferumfang .st-note{display:block;padding:11px 14px;margin:0 0 14px;border-left:2px solid var(--st-accent);background:rgba(50,41,47,.04);border-radius:0 6px 6px 0;font-size:13.5px;line-height:1.45;color:var(--st-muted)}
.st-lieferumfang .st-note strong{color:var(--st-ink);font-weight:600}
.st-lieferumfang .st-note--warn{border-left-color:#E0A800;background:rgba(224,168,0,.08)}
.st-lieferumfang .st-lu-list{list-style:none;padding:0;margin:0}
.st-lieferumfang .st-lu-list li{display:flex;align-items:baseline;gap:14px;padding:11px 0;border-bottom:1px solid var(--st-line)}
.st-lieferumfang .st-lu-list li:last-child{border-bottom:none}
.st-lieferumfang .st-menge{flex:0 0 auto;min-width:38px;font-size:12px;font-weight:700;letter-spacing:.06em;color:var(--st-accent);font-variant-numeric:tabular-nums}
.st-lieferumfang .st-artikel{flex:1 1 auto;min-width:0;color:var(--st-ink)}
</style>
<div class="st-lieferumfang">
<ul class="st-lu-list">
<li><span class="st-menge">1x</span><span class="st-artikel">Präsenzmelder Deckeneinbau Tree</span></li>
<li><span class="st-menge">4x</span><span class="st-artikel">Verbindungsklemmen</span></li>
<li><span class="st-menge">1x</span><span class="st-artikel">Aufkleber zur Abdeckung der Fresnellinse für die Eingrenzung des Detektionsbereiches</span></li>
<li><span class="st-menge">1x</span><span class="st-artikel">Beipackfolder</span></li>
</ul>
</div>
<style>
.st-download-links{
--st-accent:#00BAF2;
--st-ink:#32292F;
--st-line:rgba(50,41,47,.18);
display:block;width:100%;max-width:100%;min-width:0;
font-family:inherit;color:var(--st-ink);margin:0
}
.st-download-links *{box-sizing:border-box}
.st-download-links .st-var+.st-var{margin-top:26px;padding-top:22px;border-top:1px solid rgba(50,41,47,.12)}
.st-download-links .st-var-title{font-size:17px;font-weight:800;letter-spacing:-.01em;color:var(--st-ink);margin:0 0 12px;padding:0;border:0}
.st-download-links .st-dl-grid{display:flex;flex-wrap:wrap;gap:9px;margin:0}
.st-download-links .st-dl{
display:inline-flex;align-items:center;gap:10px;max-width:100%;
padding:11px 17px;border:1px solid var(--st-line);border-radius:9px;background:#fff;
color:var(--st-ink);text-decoration:none;
font-size:11.5px;font-weight:600;letter-spacing:.07em;text-transform:uppercase;line-height:1.3;
transition:border-color .15s ease,color .15s ease,background-color .15s ease
}
.st-download-links .st-dl:hover,.st-download-links .st-dl:focus-visible{border-color:var(--st-accent);color:var(--st-accent);background:rgba(0,186,242,.05)}
.st-download-links .st-dl:focus-visible{outline:2px solid var(--st-accent);outline-offset:2px}
.st-download-links .st-dl-glyph{flex:0 0 auto;width:17px;height:17px}
.st-download-links .st-dl-name{min-width:0;overflow-wrap:anywhere}
.st-download-links .st-dl-fmt{flex:0 0 auto;padding-left:10px;border-left:1px solid rgba(50,41,47,.16);color:rgba(50,41,47,.42);font-weight:700}
.st-download-links .st-dl:hover .st-dl-fmt{border-left-color:rgba(0,186,242,.3)}
@media (max-width:480px){
.st-download-links .st-dl-grid{display:block}
.st-download-links .st-dl{display:flex;width:100%;margin-bottom:9px;padding:11px 14px}
.st-download-links .st-dl-name{flex:1 1 auto}
}
@media (prefers-reduced-motion:reduce){.st-download-links .st-dl{transition:none}}
</style>
<div class="st-download-links">
<div class="st-dl-grid">
<a class="st-dl" href="https://pim.loxone.com/01%20Product%20Data/01%20Products/Basics%20%26%20Accessories/100467%20-%20Pr%C3%A4senzmelder%20Deckeneinbau%20Tree%20Anthrazit/Specifications/Folder_FlushmountPresenceSensorTree_100466.pdf" target="_blank" rel="noopener noreferrer">
<svg class="st-dl-glyph" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round" aria-hidden="true"><path d="M6.8 16.5a3.9 3.9 0 0 1 .55-7.78 5.4 5.4 0 0 1 10.4 1.05A3.45 3.45 0 0 1 17.4 16.5"/><path d="M12 11.4v6.1m0 0 2.4-2.4M12 17.5l-2.4-2.4"/></svg>
<span class="st-dl-name">Folder</span>
<span class="st-dl-fmt">PDF</span>
</a>
<a class="st-dl" href="https://pim.loxone.com/01%20Product%20Data/01%20Products/Basics%20%26%20Accessories/100467%20-%20Pr%C3%A4senzmelder%20Deckeneinbau%20Tree%20Anthrazit/Specifications/CE%20Erkl%C3%A4rung%20Pr%C3%A4senzmelder%20Deckeneinbau.pdf" target="_blank" rel="noopener noreferrer">
<svg class="st-dl-glyph" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round" aria-hidden="true"><path d="M6.8 16.5a3.9 3.9 0 0 1 .55-7.78 5.4 5.4 0 0 1 10.4 1.05A3.45 3.45 0 0 1 17.4 16.5"/><path d="M12 11.4v6.1m0 0 2.4-2.4M12 17.5l-2.4-2.4"/></svg>
<span class="st-dl-name">Konformitätserklärung</span>
<span class="st-dl-fmt">PDF</span>
</a>
<a class="st-dl" href="https://pim.loxone.com/01%20Product%20Data/01%20Products/Basics%20%26%20Accessories/100467%20-%20Pr%C3%A4senzmelder%20Deckeneinbau%20Tree%20Anthrazit/Specifications/CECZ_FlushmountPresenceSensorTree_100466%2C100467%2C100498.pdf" target="_blank" rel="noopener noreferrer">
<svg class="st-dl-glyph" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round" aria-hidden="true"><path d="M6.8 16.5a3.9 3.9 0 0 1 .55-7.78 5.4 5.4 0 0 1 10.4 1.05A3.45 3.45 0 0 1 17.4 16.5"/><path d="M12 11.4v6.1m0 0 2.4-2.4M12 17.5l-2.4-2.4"/></svg>
<span class="st-dl-name">Konformität CZ</span>
<span class="st-dl-fmt">PDF</span>
</a>
<a class="st-dl" href="https://pim.loxone.com/01%20Product%20Data/01%20Products/Basics%20%26%20Accessories/100467%20-%20Pr%C3%A4senzmelder%20Deckeneinbau%20Tree%20Anthrazit/Specifications/CEPL_FlushmountPresenceSensorTree_100466%2C100467%2C100498.pdf" target="_blank" rel="noopener noreferrer">
<svg class="st-dl-glyph" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round" aria-hidden="true"><path d="M6.8 16.5a3.9 3.9 0 0 1 .55-7.78 5.4 5.4 0 0 1 10.4 1.05A3.45 3.45 0 0 1 17.4 16.5"/><path d="M12 11.4v6.1m0 0 2.4-2.4M12 17.5l-2.4-2.4"/></svg>
<span class="st-dl-name">Konformität PL</span>
<span class="st-dl-fmt">PDF</span>
</a>
<a class="st-dl" href="https://pim.loxone.com/01%20Product%20Data/01%20Products/Basics%20%26%20Accessories/100467%20-%20Pr%C3%A4senzmelder%20Deckeneinbau%20Tree%20Anthrazit/Specifications/CB_Cert_SE-109859_2245857KAU002_DP.pdf" target="_blank" rel="noopener noreferrer">
<svg class="st-dl-glyph" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round" aria-hidden="true"><path d="M6.8 16.5a3.9 3.9 0 0 1 .55-7.78 5.4 5.4 0 0 1 10.4 1.05A3.45 3.45 0 0 1 17.4 16.5"/><path d="M12 11.4v6.1m0 0 2.4-2.4M12 17.5l-2.4-2.4"/></svg>
<span class="st-dl-name">CB-Zertifikat</span>
<span class="st-dl-fmt">PDF</span>
</a>
<a class="st-dl" href="https://pim.loxone.com/01%20Product%20Data/01%20Products/Basics%20%26%20Accessories/100467%20-%20Pr%C3%A4senzmelder%20Deckeneinbau%20Tree%20Anthrazit/Specifications/TM_2239313KAU-002_20KFK2418-01_DP.pdf" target="_blank" rel="noopener noreferrer">
<svg class="st-dl-glyph" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round" aria-hidden="true"><path d="M6.8 16.5a3.9 3.9 0 0 1 .55-7.78 5.4 5.4 0 0 1 10.4 1.05A3.45 3.45 0 0 1 17.4 16.5"/><path d="M12 11.4v6.1m0 0 2.4-2.4M12 17.5l-2.4-2.4"/></svg>
<span class="st-dl-name">ETL-Zertifikat</span>
<span class="st-dl-fmt">PDF</span>
</a>
<a class="st-dl" href="https://www.loxone.com/dede/kb/praesenzmelder-tree/" target="_blank" rel="noopener noreferrer">
<svg class="st-dl-glyph" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round" aria-hidden="true"><path d="M14 4h6v6"/><path d="M20 4 10.5 13.5"/><path d="M18 14.5V19a2 2 0 0 1-2 2H5a2 2 0 0 1-2-2V8a2 2 0 0 1 2-2h4.5"/></svg>
<span class="st-dl-name">Dokumentation</span>
<span class="st-dl-fmt">LINK</span>
</a>
<a class="st-dl" href="https://pim.loxone.com/datasheet/100466-flush-mounted-presence-sensor-tree-white" target="_blank" rel="noopener noreferrer">
<svg class="st-dl-glyph" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round" aria-hidden="true"><path d="M6.8 16.5a3.9 3.9 0 0 1 .55-7.78 5.4 5.4 0 0 1 10.4 1.05A3.45 3.45 0 0 1 17.4 16.5"/><path d="M12 11.4v6.1m0 0 2.4-2.4M12 17.5l-2.4-2.4"/></svg>
<span class="st-dl-name">Datenblatt Weiß</span>
<span class="st-dl-fmt">PDF</span>
</a>
<a class="st-dl" href="https://pim.loxone.com/datasheet/100467-flush-mounted-presence-sensor-tree-anthracite" target="_blank" rel="noopener noreferrer">
<svg class="st-dl-glyph" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round" aria-hidden="true"><path d="M6.8 16.5a3.9 3.9 0 0 1 .55-7.78 5.4 5.4 0 0 1 10.4 1.05A3.45 3.45 0 0 1 17.4 16.5"/><path d="M12 11.4v6.1m0 0 2.4-2.4M12 17.5l-2.4-2.4"/></svg>
<span class="st-dl-name">Datenblatt Anthrazit</span>
<span class="st-dl-fmt">PDF</span>
</a>
<a class="st-dl" href="https://pim.loxone.com/datasheet/100498-flush-mounted-presence-sensor-tree-gold" target="_blank" rel="noopener noreferrer">
<svg class="st-dl-glyph" viewBox="0 0 24 24" fill="none" stroke="currentColor" stroke-width="1.5" stroke-linecap="round" stroke-linejoin="round" aria-hidden="true"><path d="M6.8 16.5a3.9 3.9 0 0 1 .55-7.78 5.4 5.4 0 0 1 10.4 1.05A3.45 3.45 0 0 1 17.4 16.5"/><path d="M12 11.4v6.1m0 0 2.4-2.4M12 17.5l-2.4-2.4"/></svg>
<span class="st-dl-name">Datenblatt Gold</span>
<span class="st-dl-fmt">PDF</span>
</a>
</div>
</div>
