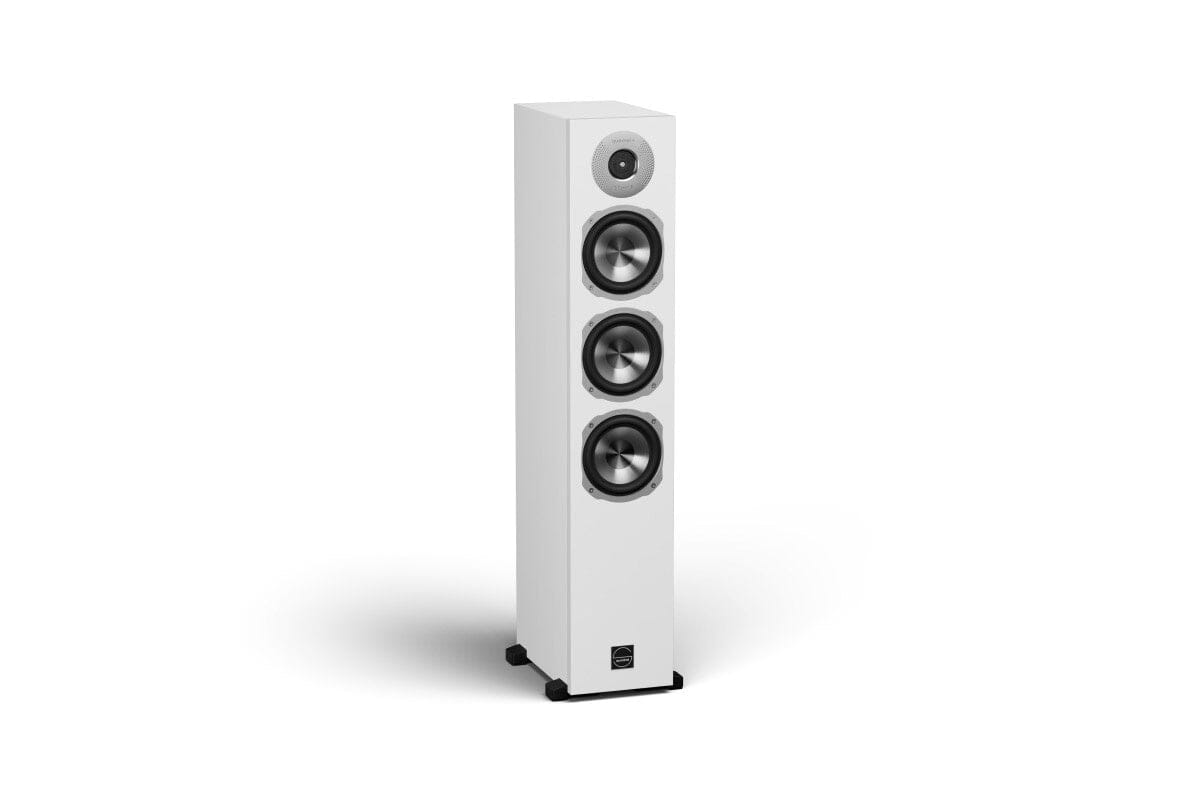

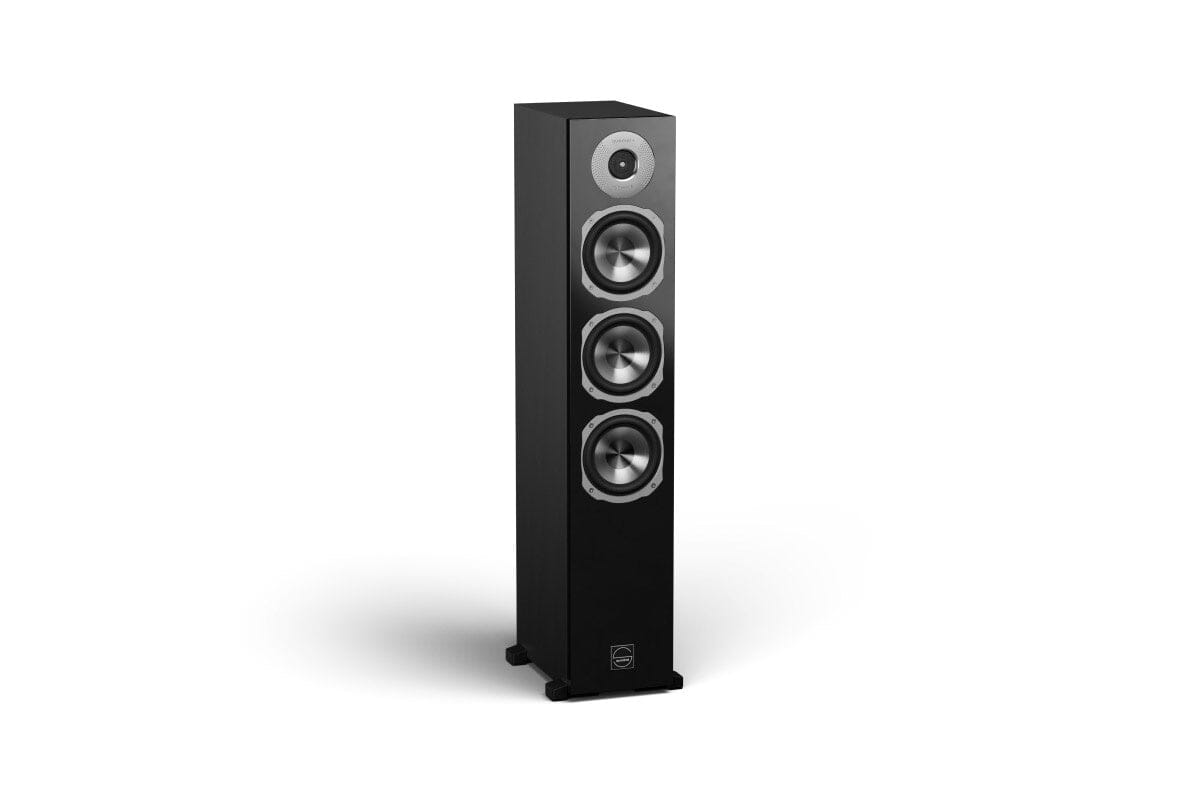

Dreiwege-Standlautsprecher mit Doppelbass
Die SIGNUM 70 arbeitet als Dreiwegesystem nach dem Bassreflexprinzip. Zwei Tieftonöner mit je 155 mm und ein Mitteltöner derselben Größe sitzen in getrennten Gehäusekammern, damit sie sich gegenseitig nicht beeinflussen. Den Hochton übernimmt ein Ringstrahler vom Typ RiCom-Sigma. Die Schallwände sind hochglänzend ausgeführt.
Leistungsdaten
- Nenn- und Musikleistung 120 / 180 W
- Nennimpedanz 4 Ohm
- Empfindlichkeit 89 dB
- Übertragungsbereich 32 bis 32.000 Hz
- Übergangsfrequenzen 800 und 3.100 Hz
- Tieftonöner 2 x 155 mm aus Titanium-PP, Mitteltöner 155 mm
- Gewicht 17,32 kg
Ausschreibungstext
Passiver Dreiwege-Standlautsprecher nach dem Bassreflexprinzip mit zwei Tieftonönern von je 155 mm aus Titanium-PP in getrennten Gehäusekammern, Mitteltöner 155 mm und Ringstrahler RiCom-Sigma. Nenn- und Musikleistung 120 / 180 W, Nennimpedanz 4 Ohm, Empfindlichkeit 89 dB, Übertragungsbereich 32 bis 32.000 Hz, Übergangsfrequenzen 800 und 3.100 Hz. Gewicht 17,32 kg.
<style>
.st-specs{
--st-accent:#00BAF2;
--st-ink:#32292F;
--st-muted:rgba(50,41,47,.62);
--st-line:rgba(50,41,47,.12);
--st-size:15px;
display:block;width:100%;max-width:100%;min-width:0;
font-family:inherit;color:var(--st-ink);font-size:var(--st-size);line-height:1.5;margin:0
}
.st-specs *{box-sizing:border-box}
.st-specs .st-var+.st-var{margin-top:34px;padding-top:28px;border-top:1px solid var(--st-line)}
.st-specs .st-var-title{font-size:17px;font-weight:800;letter-spacing:-.01em;color:var(--st-ink);margin:0 0 18px;padding:0;border:0}
.st-specs .st-sec{margin:0 0 22px}
.st-specs .st-sec:last-child{margin-bottom:0}
.st-specs .st-sec-title{display:flex;align-items:center;gap:8px;font-size:11px;font-weight:700;letter-spacing:.14em;text-transform:uppercase;color:var(--st-ink);margin:0 0 2px;padding:0;border:0}
.st-specs .st-sec-title::before{content:"";flex:0 0 auto;width:14px;height:2px;background:var(--st-accent)}
.st-specs table{width:100%;border-collapse:collapse;margin:0}
.st-specs th,.st-specs td{text-align:left;vertical-align:top;padding:10px 0;border-bottom:1px solid var(--st-line)}
.st-specs th{width:41%;padding-right:16px;font-weight:600;color:var(--st-ink);font-size:14px}
.st-specs td{color:var(--st-muted)}
.st-specs .st-v{display:block}
.st-specs .st-v+.st-v{margin-top:6px}
.st-specs .st-k{display:block;font-size:11px;font-weight:600;letter-spacing:.06em;text-transform:uppercase;color:rgba(50,41,47,.45);margin-bottom:1px}
.st-specs img{max-width:200px;height:auto;margin-top:4px}
@media (max-width:600px){
.st-specs tr{display:block;padding:9px 0;border-bottom:1px solid var(--st-line)}
.st-specs th,.st-specs td{display:block;width:auto;padding:0;border:0}
.st-specs th{margin-bottom:2px}
}
</style>
<div class="st-specs">
<div class="st-sec">
<h3 class="st-sec-title">Audio-Spezifikationen</h3>
<table>
<tr><th scope="row">Lautsprecher Typ</th><td><span class="st-v">3-Wege</span></td></tr>
<tr><th scope="row">Nenn- und Musikleistung</th><td><span class="st-v">120/180 W</span></td></tr>
<tr><th scope="row">Übertragungsbereich</th><td><span class="st-v">32 … 32.000 Hz</span></td></tr>
<tr><th scope="row">Übergangsfrequenz</th><td><span class="st-v">800/3.100 Hz</span></td></tr>
<tr><th scope="row">Empfindlichkeit</th><td><span class="st-v">89 dB</span></td></tr>
<tr><th scope="row">Nennimpedanz</th><td><span class="st-v">4 Ohm</span></td></tr>
<tr><th scope="row">Hochtöner-Art</th><td><span class="st-v">RiCom-Sigma</span></td></tr>
<tr><th scope="row">Tieftöner Ø</th><td><span class="st-v">2x 155 mm Ø</span></td></tr>
<tr><th scope="row">Tieftöner-Membranmaterial</th><td><span class="st-v">Titanium-PP</span></td></tr>
<tr><th scope="row">Mitteltöner</th><td><span class="st-v">155 mm Ø Titanium-PP</span></td></tr>
</table>
</div>
<div class="st-sec">
<h3 class="st-sec-title">Technische Daten</h3>
<table>
<tr><th scope="row">Prinzip</th><td><span class="st-v">Bassreflex</span></td></tr>
<tr><th scope="row">Gewicht</th><td><span class="st-v">17,32 kg</span></td></tr>
</table>
</div>
</div>
<style>
.st-lieferumfang{
--st-accent:#00BAF2;
--st-ink:#32292F;
--st-muted:rgba(50,41,47,.62);
--st-line:rgba(50,41,47,.12);
--st-size:15px;
display:block;width:100%;max-width:100%;min-width:0;
font-family:inherit;color:var(--st-ink);font-size:var(--st-size);line-height:1.5;margin:0
}
.st-lieferumfang *{box-sizing:border-box}
.st-lieferumfang .st-note{display:block;padding:11px 14px;margin:0 0 14px;border-left:2px solid var(--st-accent);background:rgba(50,41,47,.04);border-radius:0 6px 6px 0;font-size:13.5px;line-height:1.45;color:var(--st-muted)}
.st-lieferumfang .st-note strong{color:var(--st-ink);font-weight:600}
.st-lieferumfang .st-note--warn{border-left-color:#E0A800;background:rgba(224,168,0,.08)}
.st-lieferumfang .st-lu-list{list-style:none;padding:0;margin:0}
.st-lieferumfang .st-lu-list li{display:flex;align-items:baseline;gap:14px;padding:11px 0;border-bottom:1px solid var(--st-line)}
.st-lieferumfang .st-lu-list li:last-child{border-bottom:none}
.st-lieferumfang .st-menge{flex:0 0 auto;min-width:38px;font-size:12px;font-weight:700;letter-spacing:.06em;color:var(--st-accent);font-variant-numeric:tabular-nums}
.st-lieferumfang .st-artikel{flex:1 1 auto;min-width:0;color:var(--st-ink)}
</style>
<div class="st-lieferumfang">
<ul class="st-lu-list">
<li><span class="st-menge">1x</span><span class="st-artikel">SIGNUM 70</span></li>
<li><span class="st-menge">1x</span><span class="st-artikel">Frontrahmen</span></li>
<li><span class="st-menge">1x</span><span class="st-artikel">Bedienungsanleitung</span></li>
<li><span class="st-menge">1x</span><span class="st-artikel">Garantiebedingungen</span></li>
</ul>
</div>
